F4042R.W32.032.Z05.10
Image may not correspond to reality
  • F4042R.W32.032.Z05.10
  • F4042R.W32.032.Z05.10

F4042R.W32.032.Z05.10

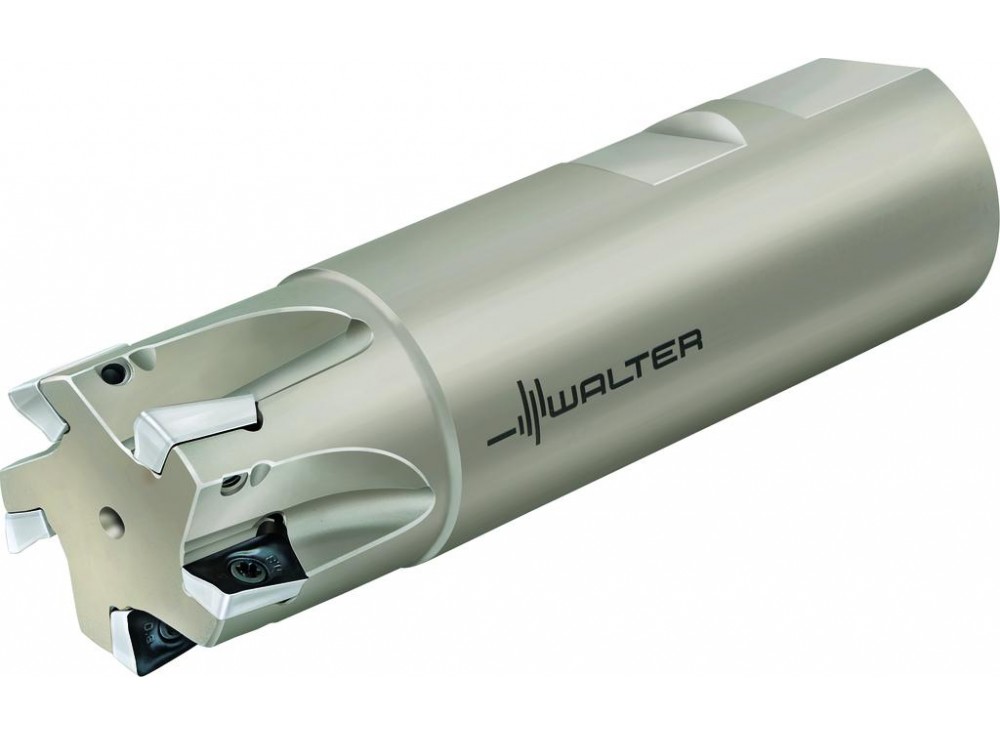

Shoulder milling cutters
F4042R.W32.032.Z05.10
Walter AG
€378.40

€378.40 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert
  • Reinforced design

Shoulder milling cutters F4042R • DIN 1835 B shank • κ=90° • metric • AD .. 10T3 .. • Dc=32mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

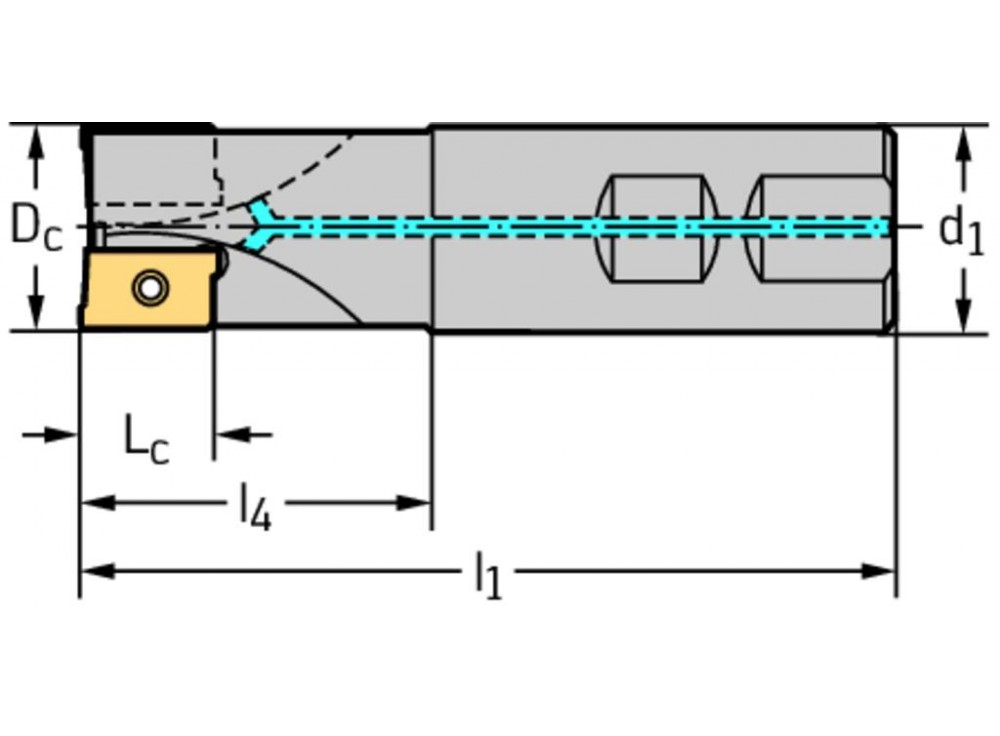

Cutting edge diameter [D c]
32 mm
Cutting edge length [L c]
10 mm
Overall length [l 1]
110 mm
Maximum projection length [l 4]
30 mm
Number of indexable inserts [No. of indexable inserts]
5
Connection diameter [d 1]
32 mm
Weight of item
0,6 kg
Number of teeth [Z]
5
Weight
0.617 kg
