F4042R.T28.032.Z04.10
Image may not correspond to reality
  • F4042R.T28.032.Z04.10
  • F4042R.T28.032.Z04.10

F4042R.T28.032.Z04.10

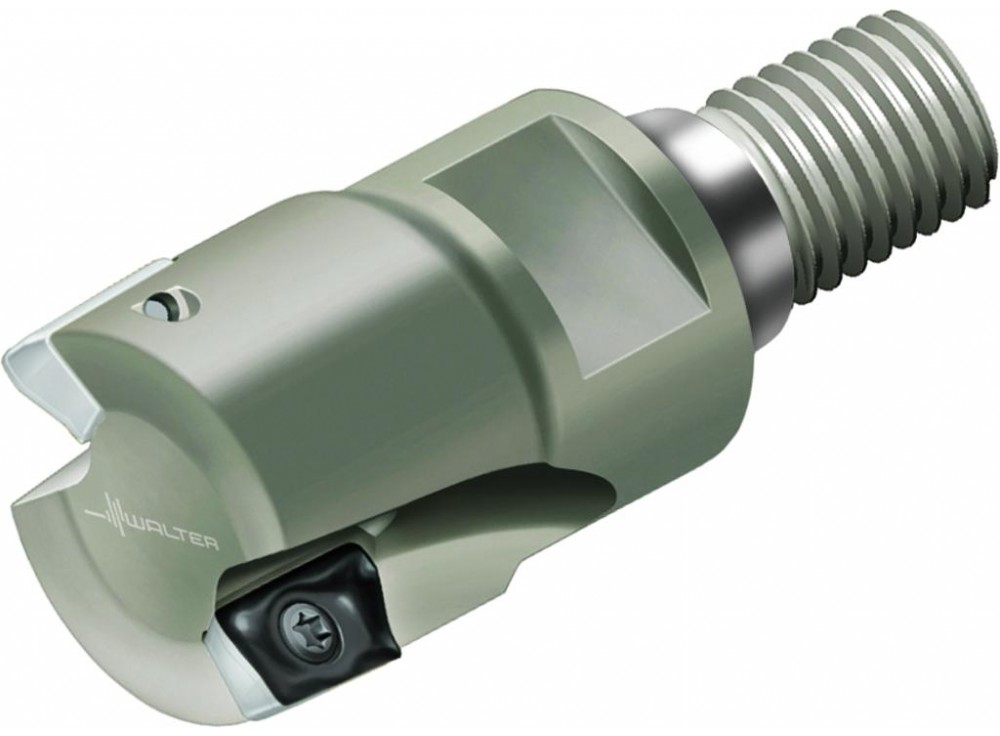

Shoulder milling cutters
F4042R.T28.032.Z04.10
Walter AG
€361.20

€361.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert
  • Reinforced design

Shoulder milling cutters F4042R • ScrewFit • κ=90° • metric • AD .. 10T3 .. • Dc=32mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

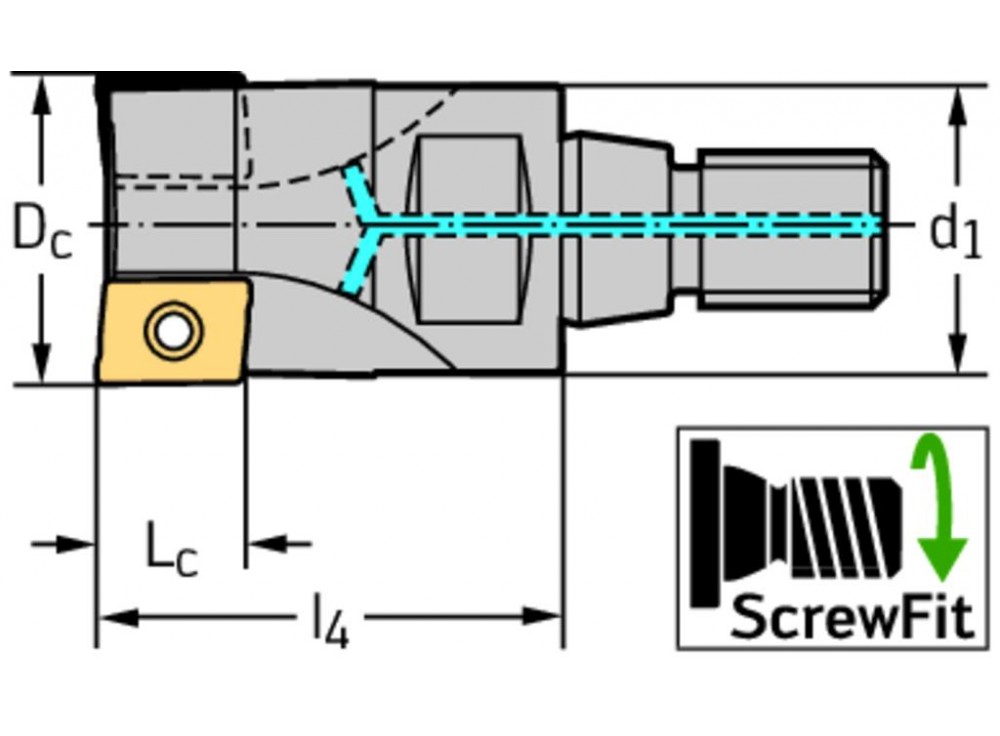

Connection diameter [d 1]
T28 mm
Cutting edge diameter [D c]
32 mm
Cutting edge length [L c]
10 mm
Maximum admissable speed [n max [rpm]]
28000
Maximum ramping angle [E]
1,2 Deg
Maximum projection length [l 4]
35 mm
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,18 kg
Number of teeth [Z]
4
Weight
0.184 kg
