F4042.B40.160.Z10.16
Image may not correspond to reality
  • F4042.B40.160.Z10.16
  • F4042.B40.160.Z10.16

F4042.B40.160.Z10.16

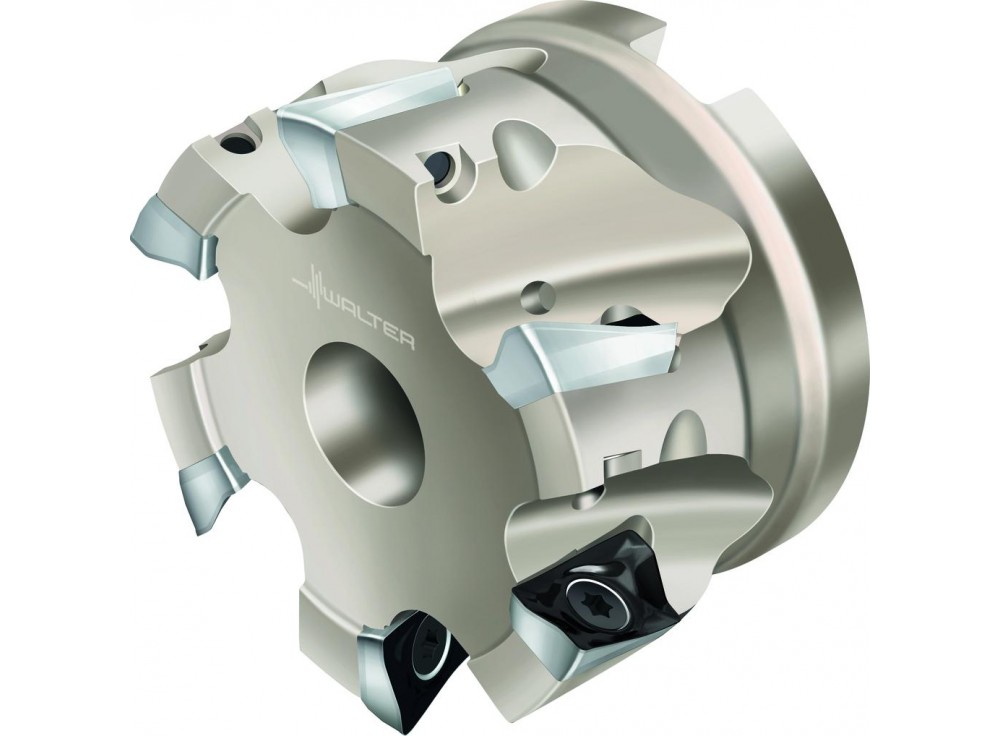

Shoulder milling cutters
F4042.B40.160.Z10.16
Walter AG
€1,075.00

€1,075.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 2 cutting edges per indexable insert

Shoulder milling cutters F4042 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • AD .. 1807 .. • Dc=160mm • Z=10

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO H
ISO O

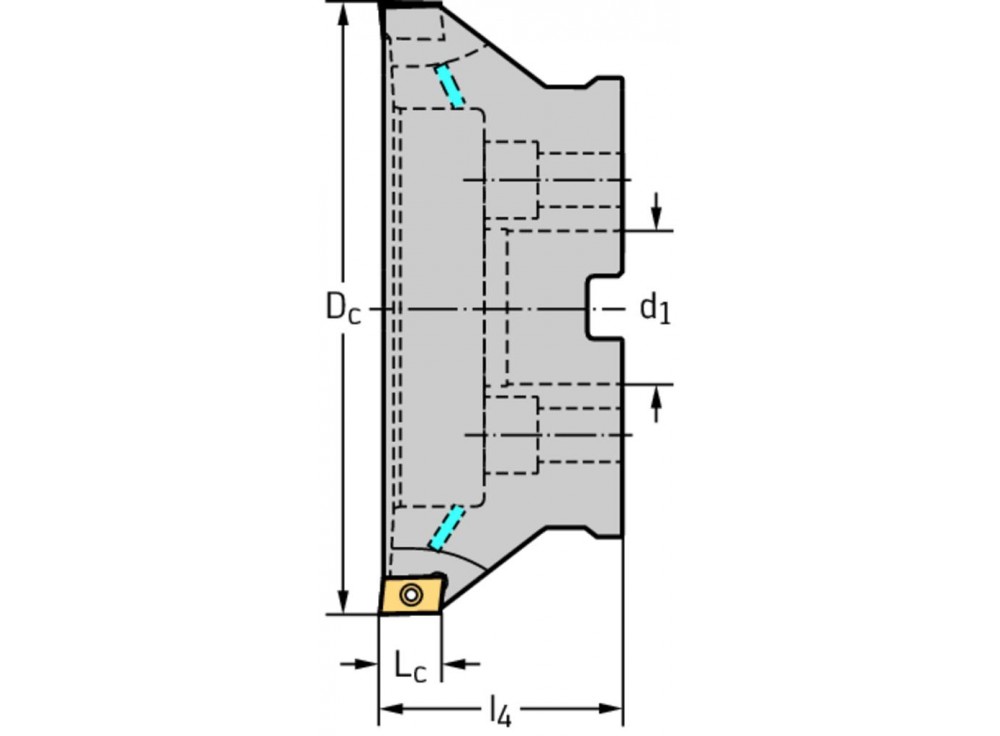

Connection diameter [d 1]
40/40 B mm
Cutting edge diameter [D c]
160 mm
Cutting edge length [L c]
16,7 mm
Maximum admissable speed [n max [rpm]]
7900
Maximum ramping angle [E]
0,5 Deg
Maximum projection length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
10
Weight of item
4,99 kg
Number of teeth [Z]
10
Weight
4.987 kg
