F4038.UW19.019.Z01.30
Image may not correspond to reality
  • F4038.UW19.019.Z01.30
  • F4038.UW19.019.Z01.30

F4038.UW19.019.Z01.30

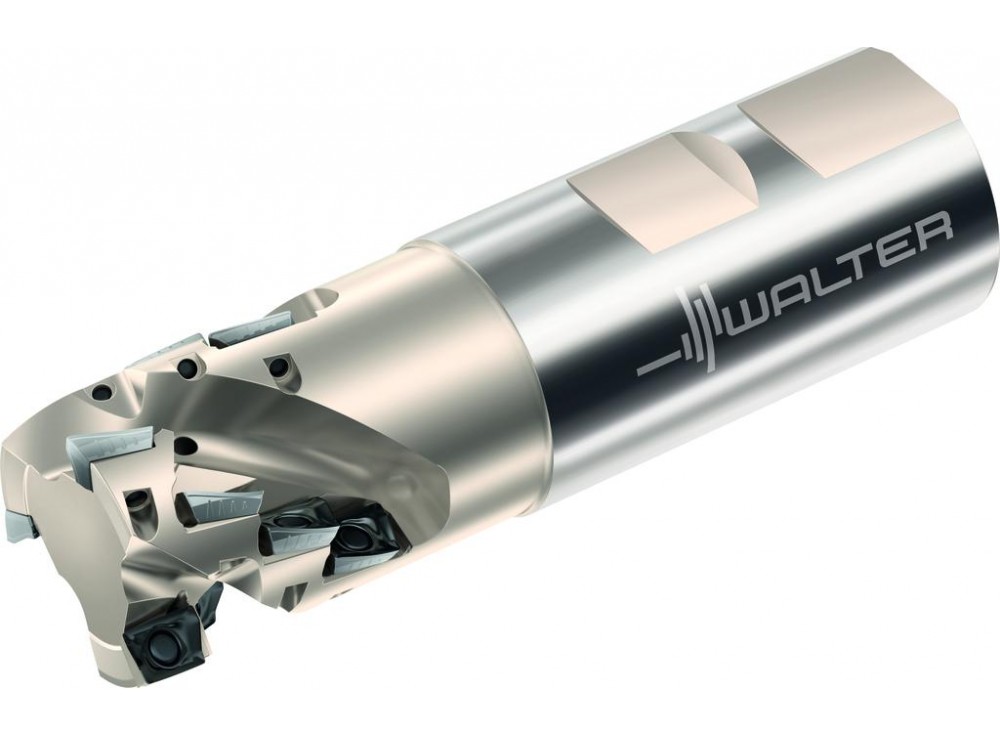

Helical milling cutters
F4038.UW19.019.Z01.30
Walter AG
€539.22

€539.22 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Full effective design
  • 2 cutting edges per indexable insert

Helical milling cutters F4038 • DIN 1835 B shank • κ=90° • inch • AD .. 0803 .. • Dc=19mm • Z=1

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO O

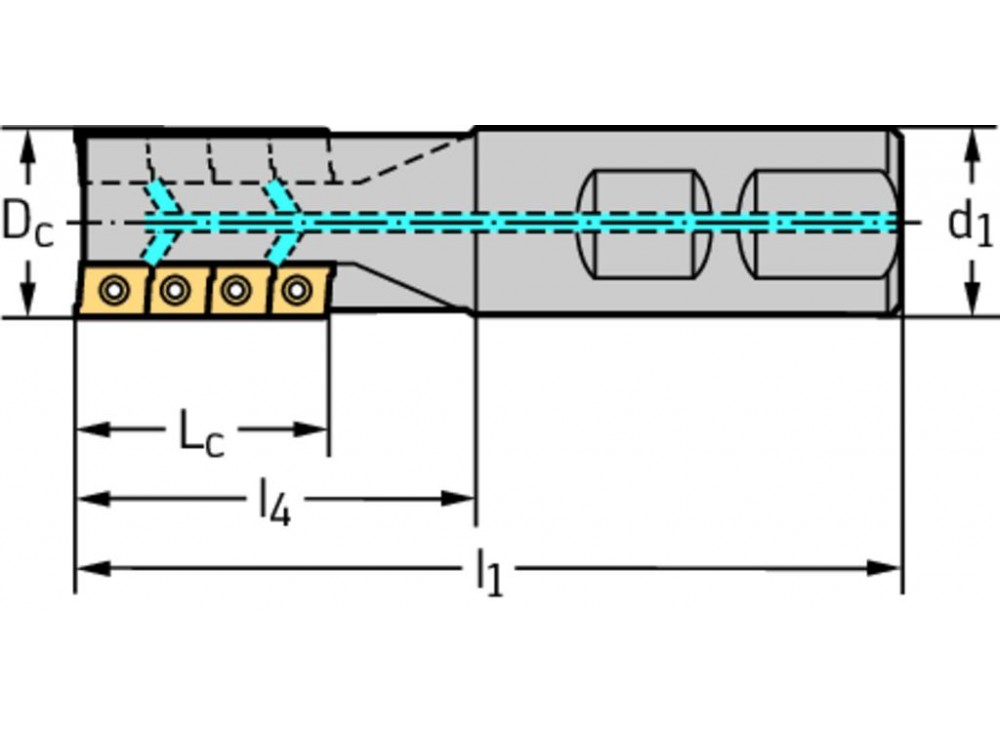

Cutting edge diameter [D c]
0,75 inch
Cutting edge length [L c]
1,181 inch
Overall length [l 1]
3,78 inch
Maximum projection length [l 4]
1,77 inch
Number of indexable inserts [No. of indexable inserts]
5
Connection diameter [d 1]
3/4 inch
Weight of item
0,2 lbs
Number of teeth [Z]
1
Weight
0.176 kg
