F4030.UB19.051.Z05.01
Image may not correspond to reality
  • F4030.UB19.051.Z05.01
  • F4030.UB19.051.Z05.01

F4030.UB19.051.Z05.01

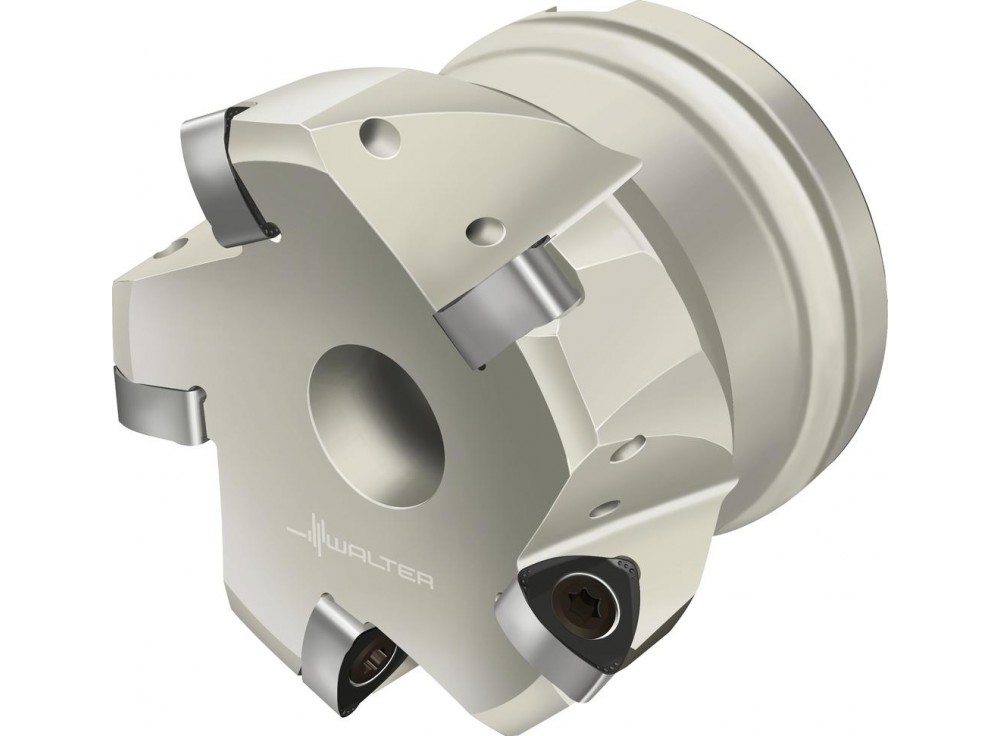

High-feed milling cutter
F4030.UB19.051.Z05.01
Walter AG
€454.94

€454.94 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • fz up to 3.5 mm
  • 6 cutting edges per indexable insert

High-feed milling cutter F4030 • Parallel bore DIN 138 transverse keyway • κ=21° • inch • P2 .. 36X1 .. • Dc=39mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

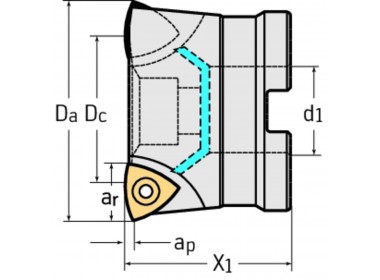

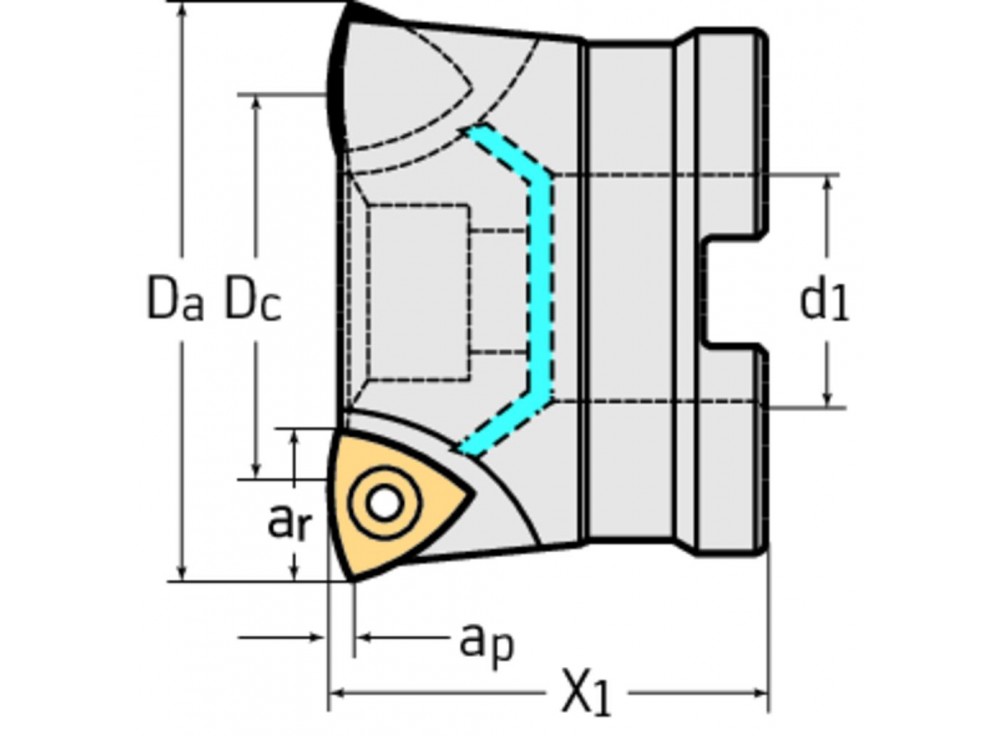

Cutting edge diameter [D a]
2 inch
Cutting edge diameter [D c]
1,543 inch
Cutting edge length [L c]
0,039 inch
A [a r]
0,276 inch
Functional length [l 4]
1,575 inch
Number of indexable inserts [No. of indexable inserts]
5
Connection size code [d 1]
0,75 inch
Weight of item
0,6 lbs
Number of teeth [Z]
5
Weight
0.589 kg
