F4030.T45.050.Z04.02
Image may not correspond to reality
  • F4030.T45.050.Z04.02
  • F4030.T45.050.Z04.02

F4030.T45.050.Z04.02

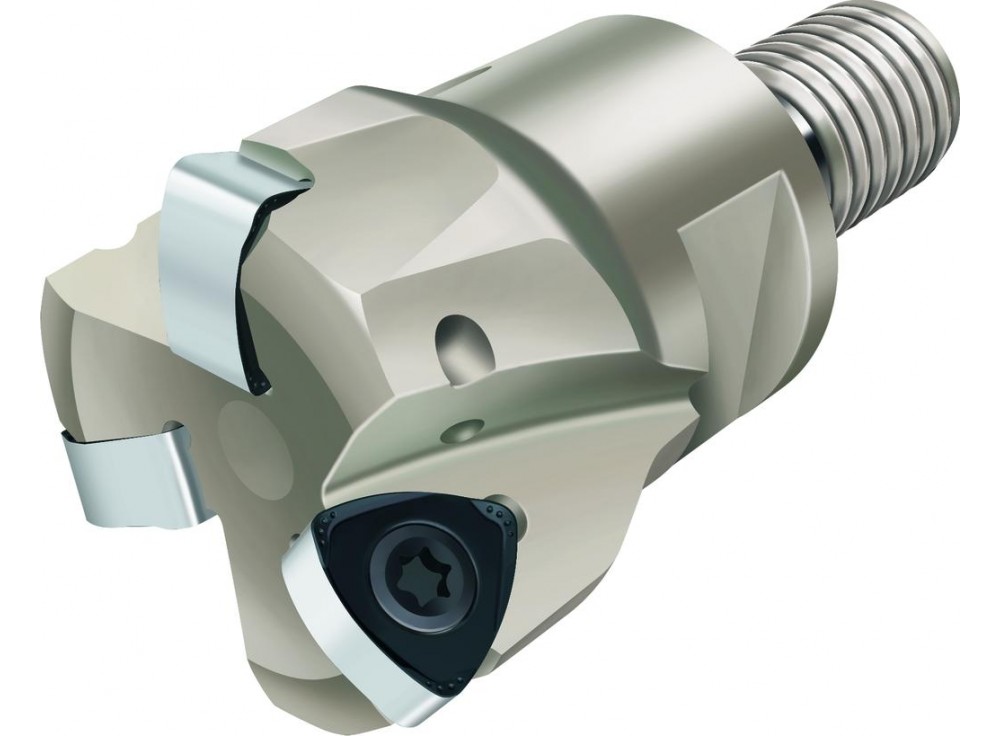

High-feed milling cutter
F4030.T45.050.Z04.02
Walter AG
€455.80

€455.80 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • fz up to 3.5 mm
  • 6 cutting edges per indexable insert

High-feed milling cutter F4030 • ScrewFit • κ=21° • metric • P2 .. 36X2 .. • Dc=32mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

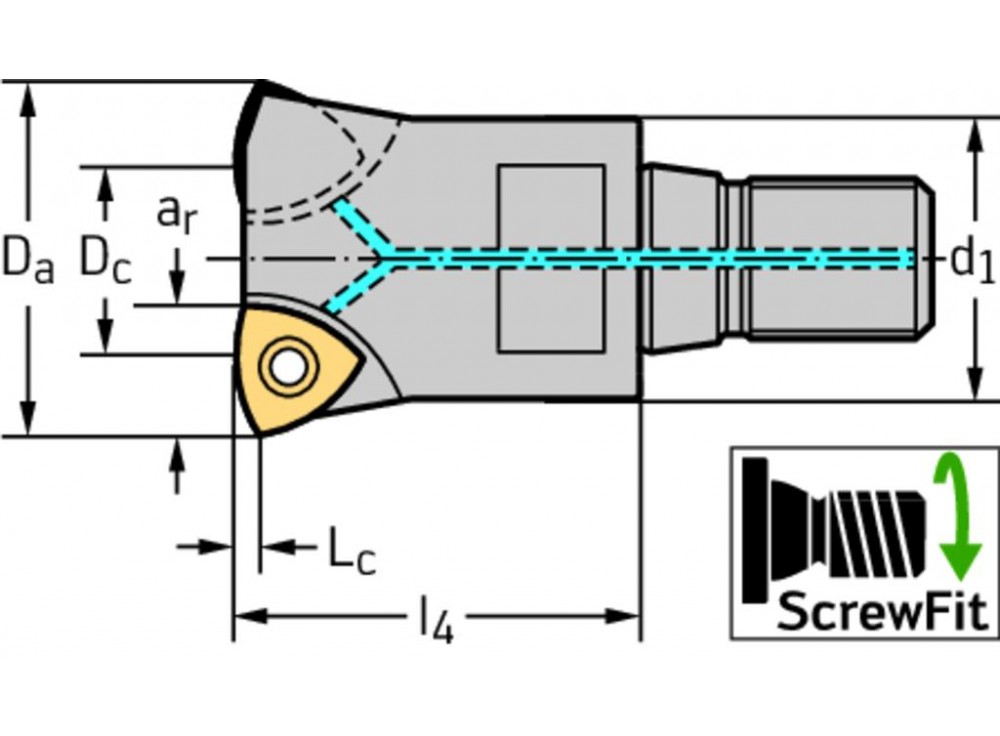

Maximum cutting diameter [D a]
50 mm
Cutting edge diameter [D c]
32 mm
Cutting edge length [L c]
2 mm
A [a r]
10 mm
Shank diameter [d 1]
T45 mm
Functional length [l 4]
45 mm
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,5 kg
Number of teeth [Z]
4
Weight
0.484 kg
