F2338F.B.085.Z05.70
Image may not correspond to reality
  • F2338F.B.085.Z05.70
  • F2338F.B.085.Z05.70

F2338F.B.085.Z05.70

Helical milling cutters
F2338F.B.085.Z05.70
Walter AG
€2,227.85

€2,227.85 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Full effective design
  • 2 or 4 cutting edges per indexable insert

Helical milling cutters F2338F • Parallel bore DIN 138 transverse keyway • κ=90° • metric • LP .. 1506 .. • Dc=85mm • Z=5

Product Details

Main application
ISO K
ISO P
Additional application
ISO M
ISO S

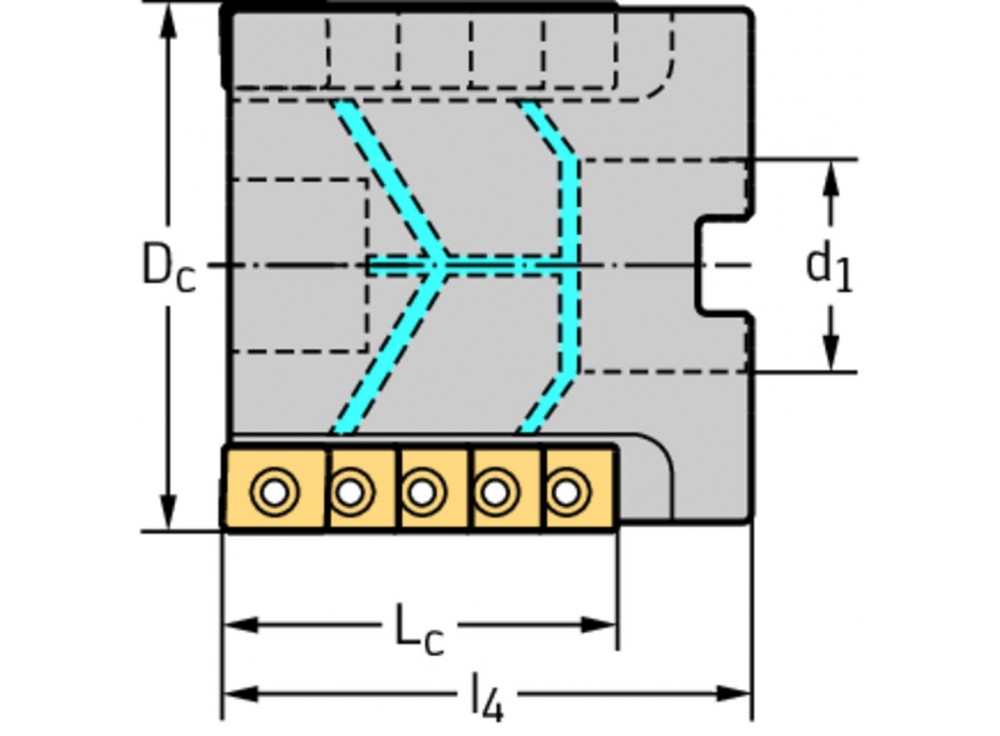

Cutting edge diameter [D c]
85 mm
Cutting edge length [L c]
70 mm
Maximum projection length [l 4]
95 mm
Number of indexable inserts [No. of indexable inserts]
5
Connection diameter [d 1]
32 mm
Weight of item
2,6 kg
Number of teeth [Z]
5
Weight
2.561 kg
