F2330.B.066.Z04.02
Image may not correspond to reality
  • F2330.B.066.Z04.02
  • F2330.B.066.Z04.02

F2330.B.066.Z04.02

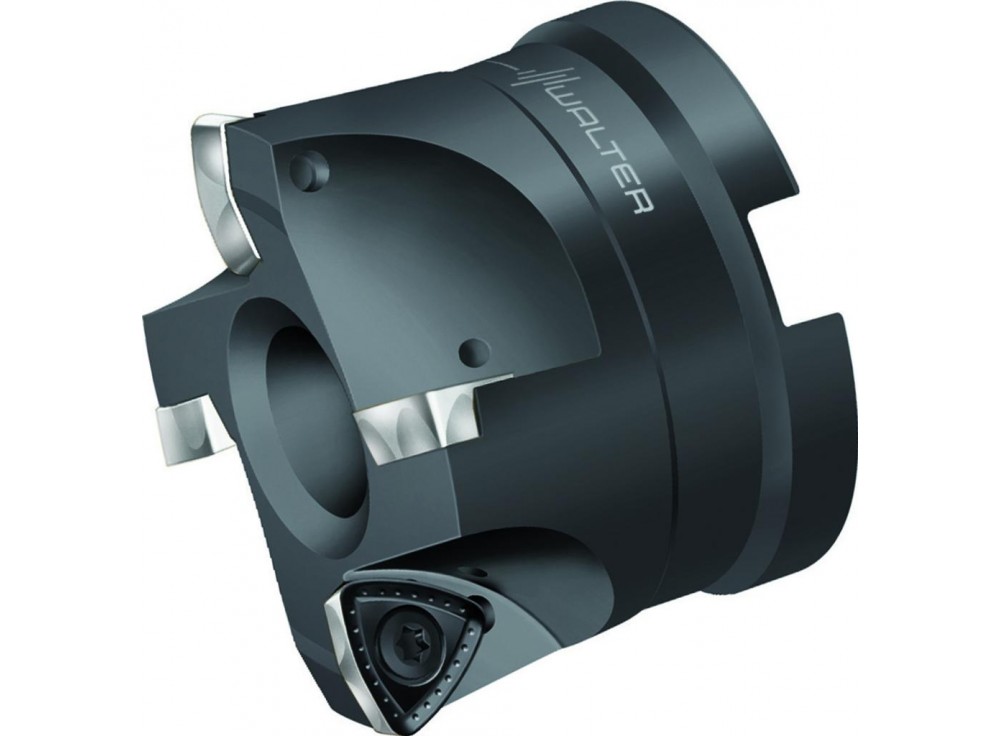

High-feed milling cutter
F2330.B.066.Z04.02
Walter AG
€442.00

€442.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • fz up to 3.5 mm
  • 3 cutting edges per indexable insert

High-feed milling cutter F2330 • Parallel bore DIN 138 transverse keyway • κ=15° • metric • P2 .. 63X5 .. • Dc=46mm • Z=4

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

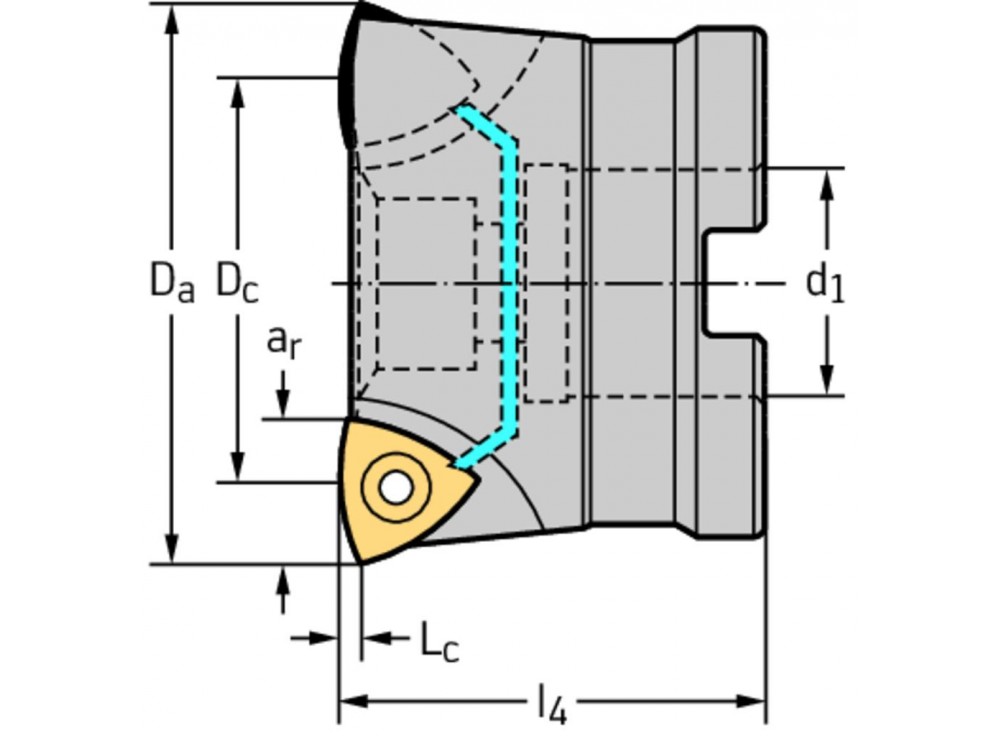

Maximum cutting diameter [D a]
66 mm
Cutting edge diameter [D c]
46 mm
Cutting edge length [L c]
2 mm
A [a r]
16,1 mm
Shank diameter [d 1]
27 mm
Functional length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
4
Weight of item
0,7 kg
Number of teeth [Z]
4
Weight
0.718 kg
