F2330.B.052.Z05.01,5

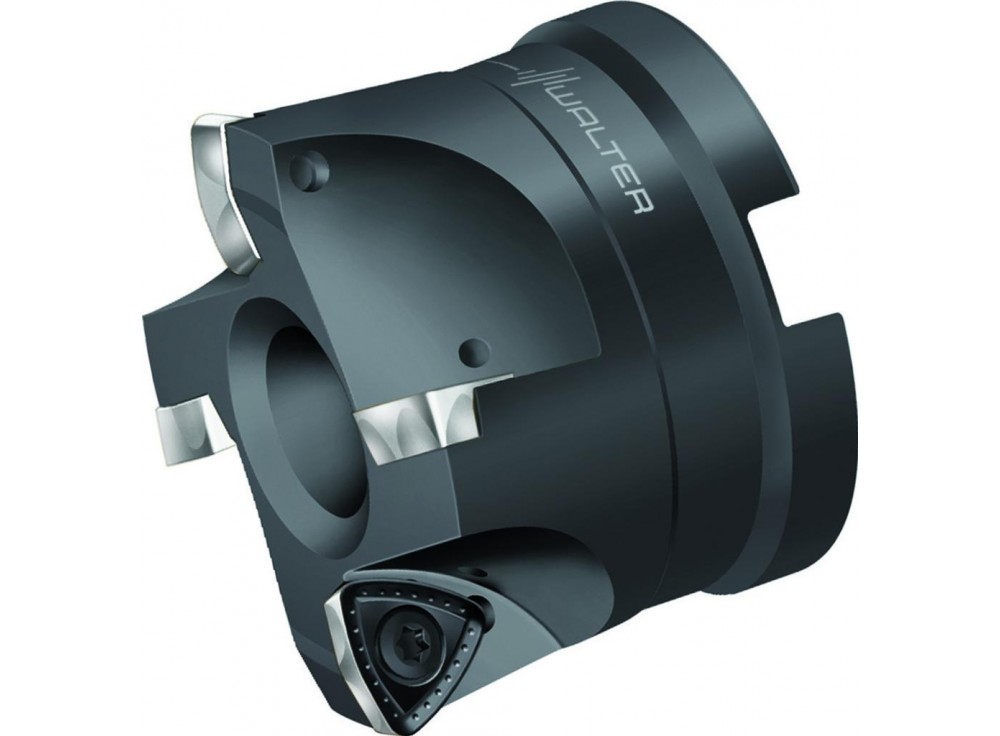

High-feed milling cutter
F2330.B.052.Z05.01,5
Walter AG
€396.95

€396.95 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • fz up to 3.5 mm
  • 3 cutting edges per indexable insert

High-feed milling cutter F2330 • Parallel bore DIN 138 transverse keyway • κ=15° • metric • P2 .. 63X5 .. • Dc=38mm • Z=5

Product Details

Main application
ISO K
ISO M
ISO P
ISO S

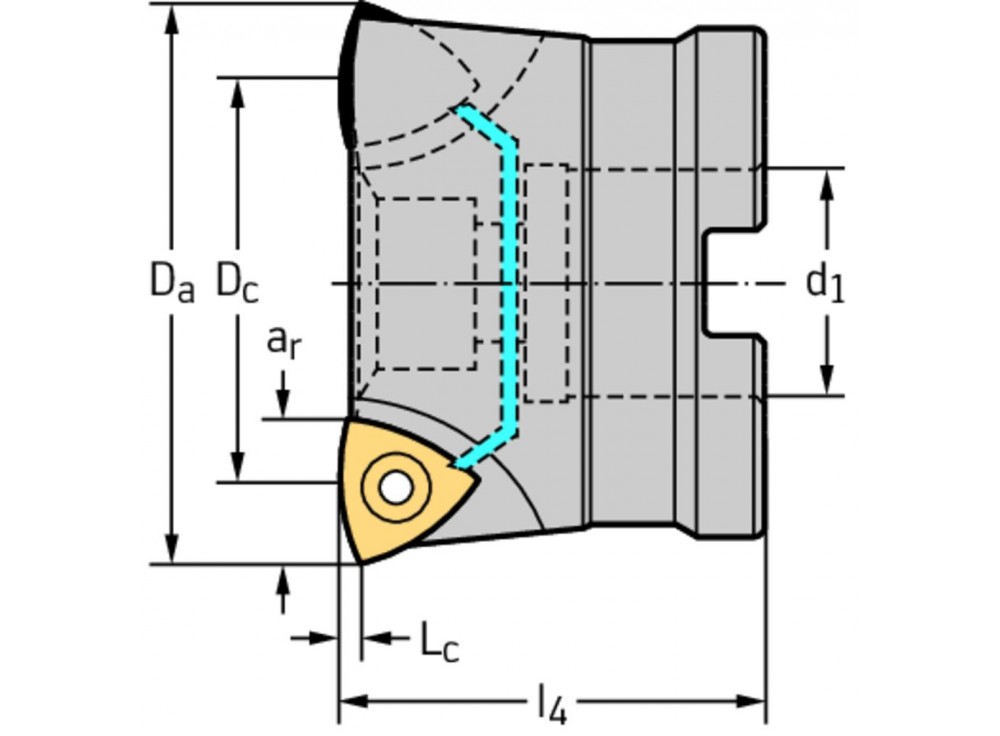

Maximum cutting diameter [D a]
52 mm
Cutting edge diameter [D c]
38 mm
Cutting edge length [L c]
1,5 mm
A [a r]
11,1 mm
Shank diameter [d 1]
22 mm
Functional length [l 4]
40 mm
Number of indexable inserts [No. of indexable inserts]
5
Weight of item
0,4 kg
Number of teeth [Z]
5
Weight
0.411 kg
