F2260.B.125.Z08.11
Image may not correspond to reality
  • F2260.B.125.Z08.11
  • F2260.B.125.Z08.11

F2260.B.125.Z08.11

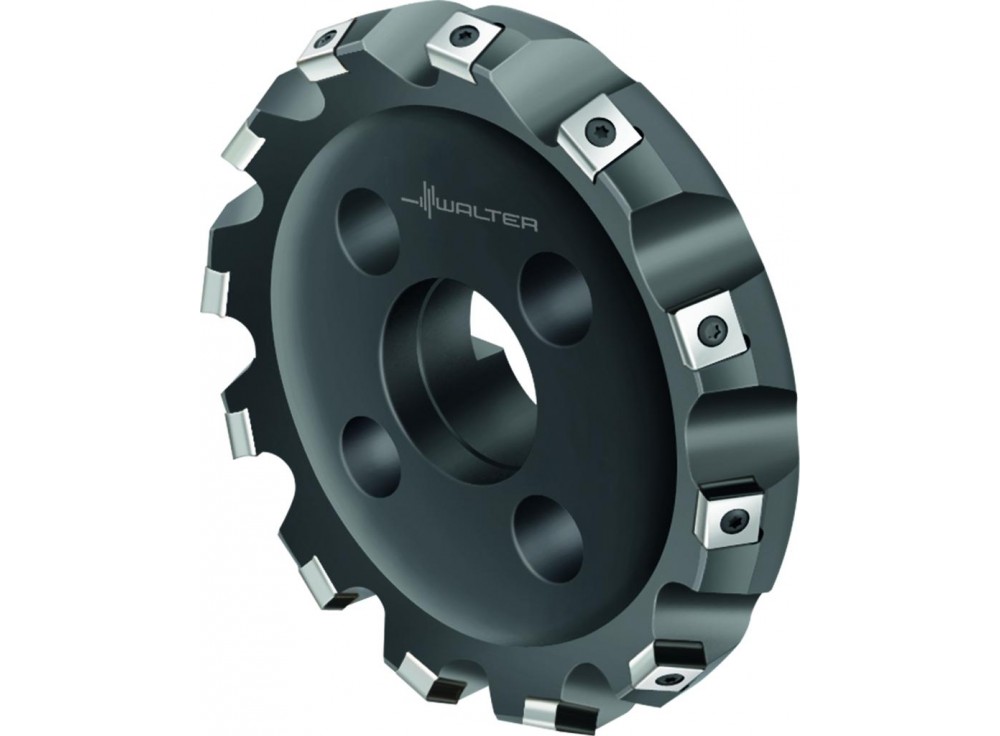

Heavy Duty Face Mill
F2260.B.125.Z08.11
Walter AG
€1,173.85

€1,173.85 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Tangential arrangement of indexable inserts
  • 4 cutting edges per indexable insert

Heavy Duty Face Mill F2260 • Parallel bore DIN 138 transverse keyway • κ=60° • metric • LN .. 1508 .. • Dc=125mm • Z=8

Product Details

Main application
ISO K
Additional application
ISO H
ISO P

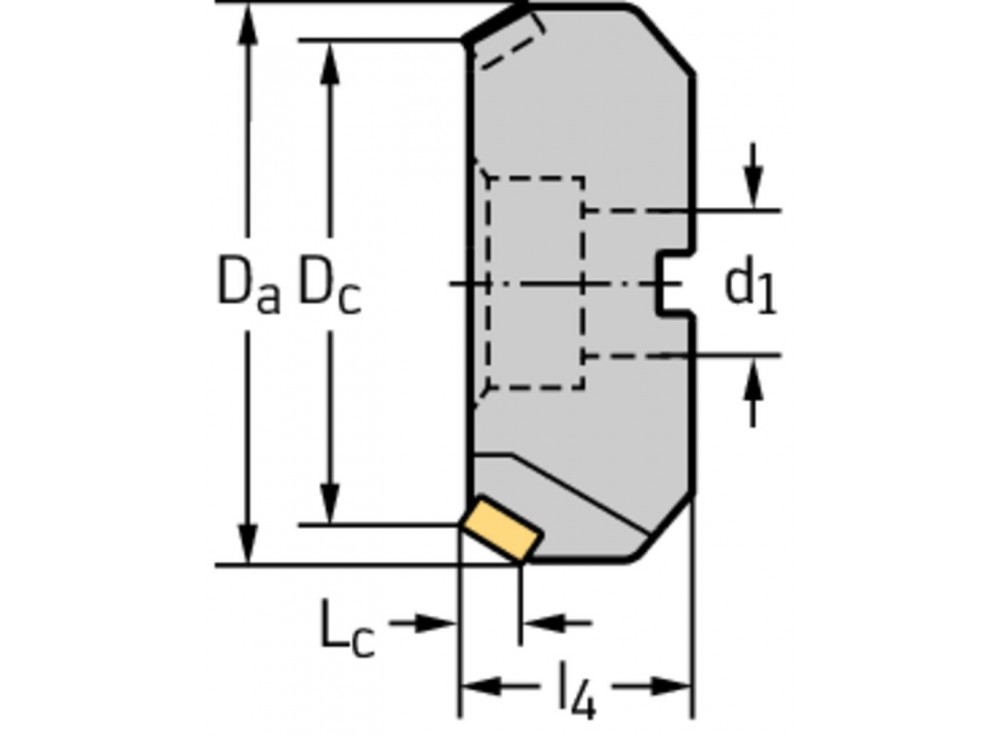

Maximum cutting diameter [D a]
138 mm
Connection diameter [d 1]
40 mm
Cutting edge diameter [D c]
125 mm
Cutting edge length [L c]
11 mm
Functional length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
8
Weight of item
3,5 kg
Number of teeth [Z]
8
Weight
3.539 kg
