F2252.BN.160.Z06.08.S684
Image may not correspond to reality
  • F2252.BN.160.Z06.08.S684
  • F2252.BN.160.Z06.08.S684

F2252.BN.160.Z06.08.S684

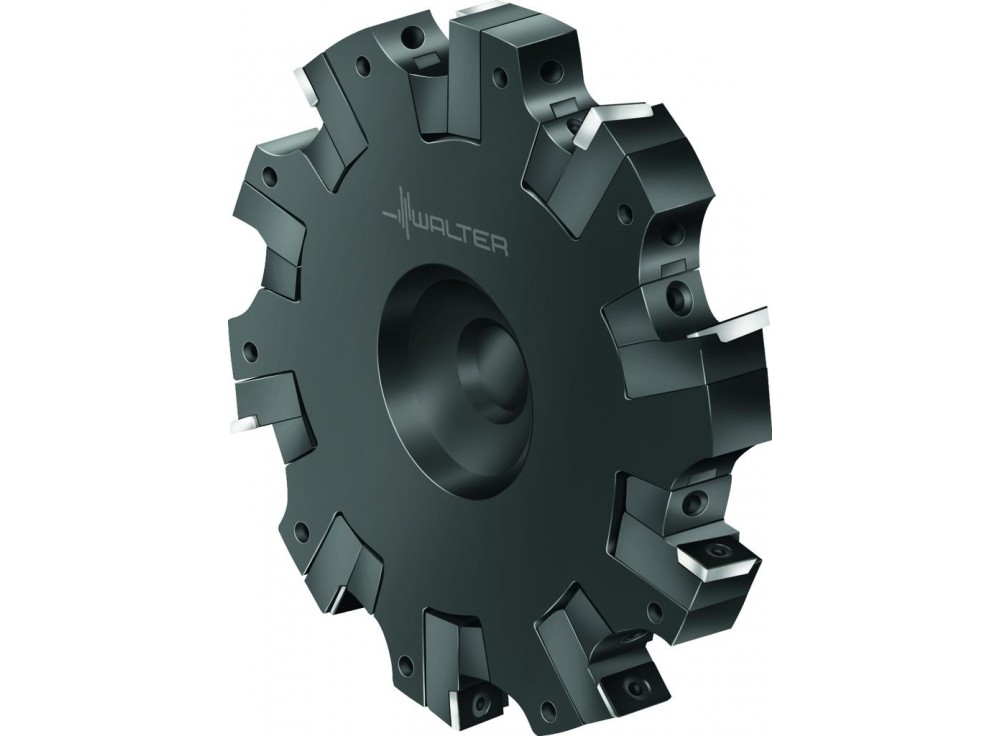

Slotting cutters for ‌slot milling
F2252.BN.160.Z06.08.S684
Walter AG
€1,913.62

€1,913.62 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Cross-toothed, cuts on three sides
  • 2 cutting edges per indexable insert

Slotting cutters for ‌slot milling F2252 • Parallel bore DIN 138 transverse keyway • metric • MP .. 0603 .. • Dc=160mm • SB=8-9mm

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
Additional application
ISO O
ISO S

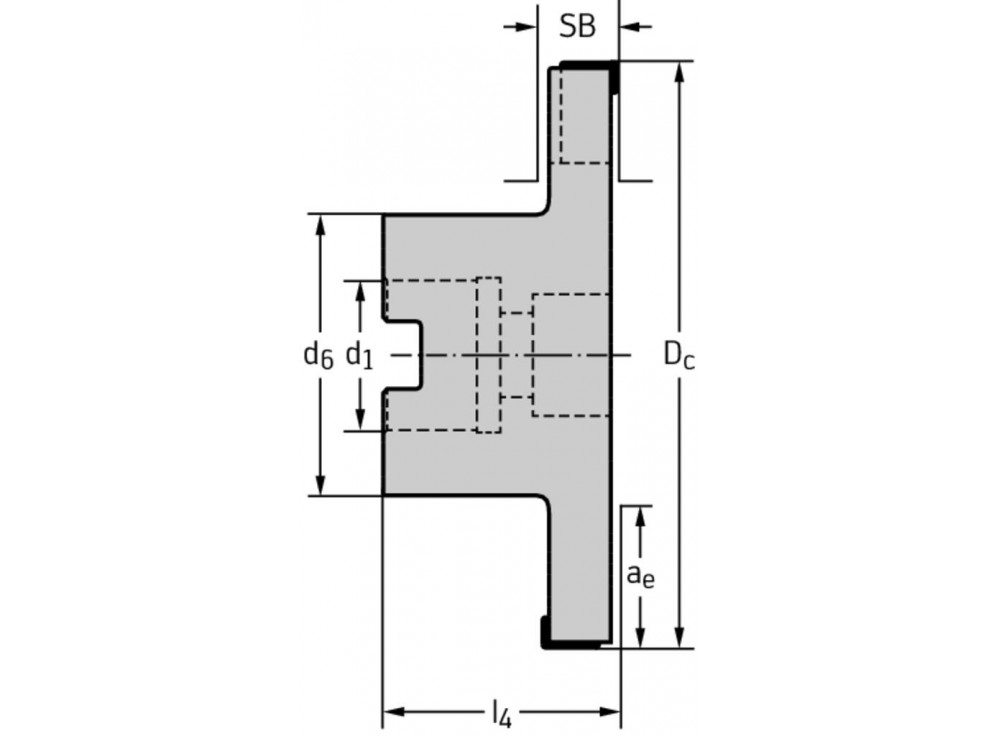

Hub diameter [d 6]
75 mm
Connection diameter [d 1]
40 mm
Cutting edge diameter [D c]
160 mm
Minimum milling width [SB min]
8 mm
Maximum milling width [SB max]
9 mm
Maximum depth of cut [a e]
40 mm
Maximum projection length [l 4]
50 mm
Number of indexable inserts [No. of indexable inserts]
12
Weight of item
1,8 kg
Number of teeth [Z]
6
Weight
1.803 kg
