F2010.B.160.Z10.08.R755M
Image may not correspond to reality
  • F2010.B.160.Z10.08.R755M
  • F2010.B.160.Z10.08.R755M

F2010.B.160.Z10.08.R755M

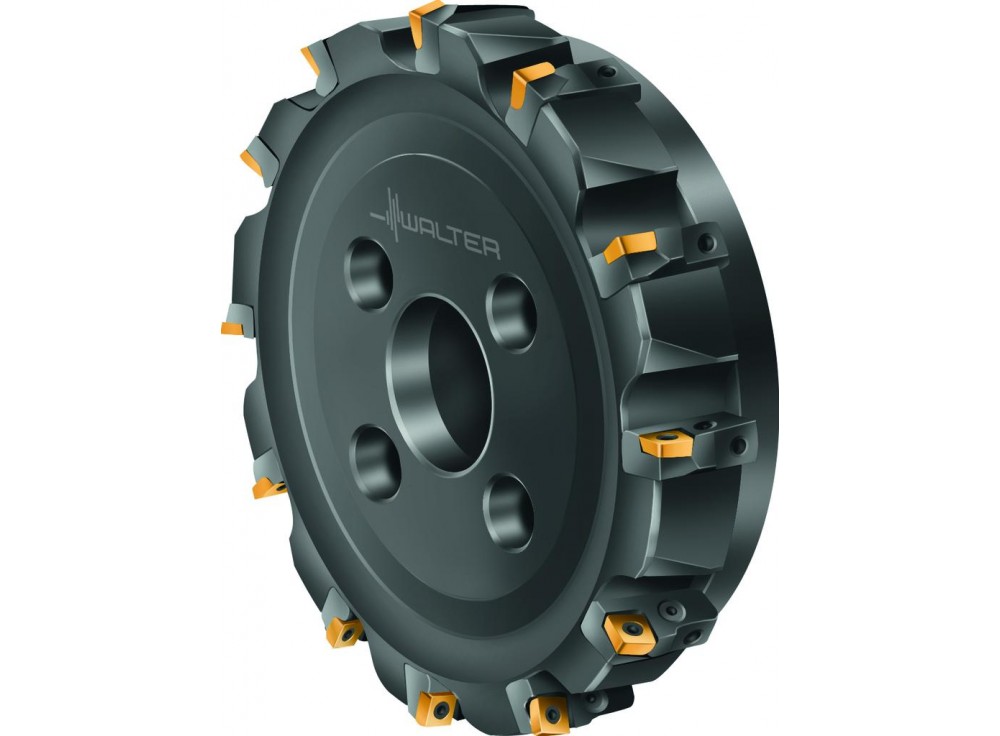

High-feed milling cutter
F2010.B.160.Z10.08.R755M
Walter AG
€1,460.38

€1,460.38 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Adjustable runout
  • 4 cutting edges per indexable insert

High-feed milling cutter F2010 • Parallel bore DIN 138 transverse keyway • κ=15° • metric • SD .. 1204 .. • Dc=150mm • Z=10

Product Details

Main application
ISO K
ISO M
ISO P
ISO S
Additional application
ISO H

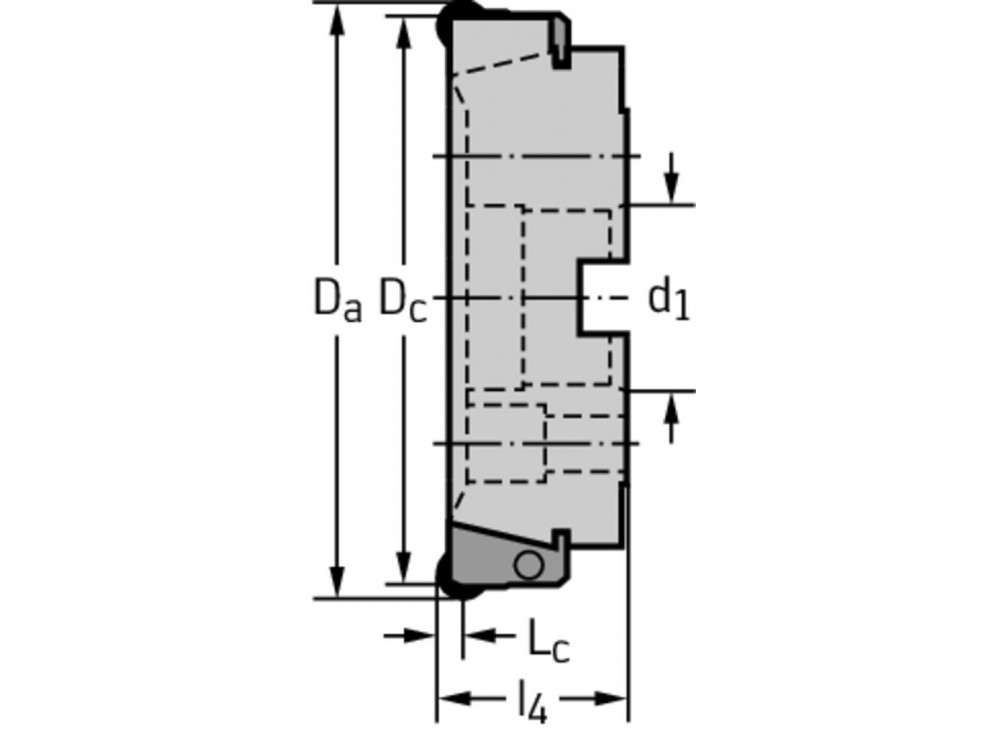

Cutting edge diameter [D a *]
173 mm
Cutting edge diameter [D c]
149,93 mm
Cutting edge length [L c]
2 mm
A [a r]
11,4 mm
Shank diameter [d 1]
40/40 B mm
Functional length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
10
Weight of item
5,6 kg
Number of teeth [Z]
10
Weight
5.6 kg
