F2010.B.160.Z10.12.R752M
Image may not correspond to reality
  • F2010.B.160.Z10.12.R752M
  • F2010.B.160.Z10.12.R752M

F2010.B.160.Z10.12.R752M

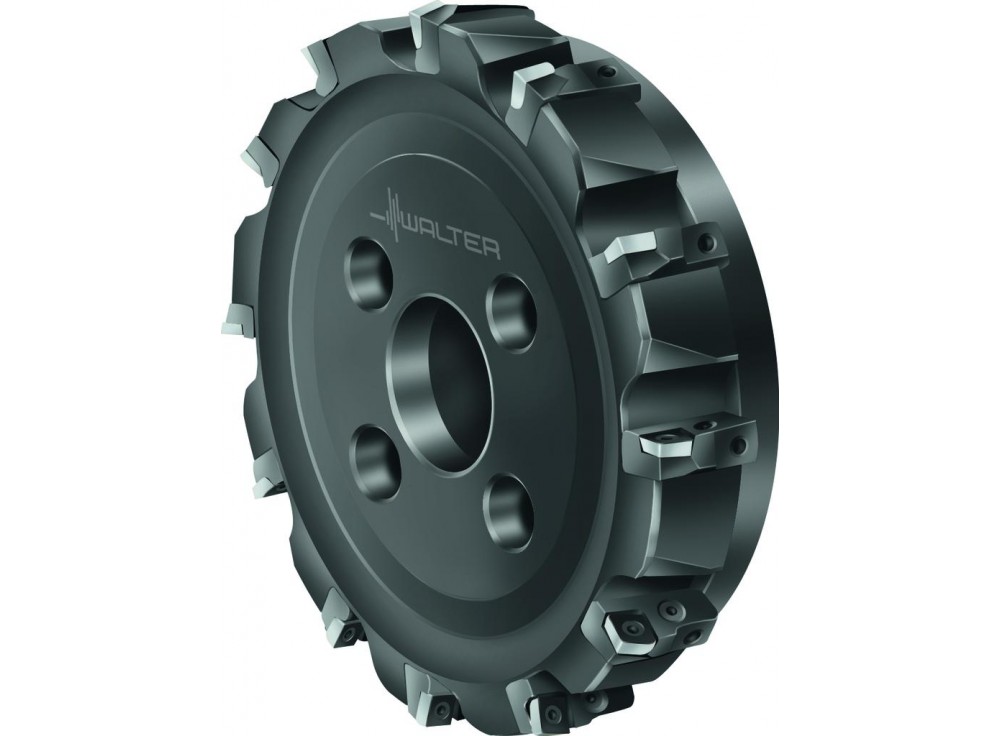

Shoulder milling cutters
F2010.B.160.Z10.12.R752M
Walter AG
€1,460.38

€1,460.38 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Adjustable runout
  • 4 cutting edges per indexable insert, tangential arrangement

Shoulder milling cutters F2010 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • LN .. 1306 .. • Dc=160mm • Z=10

Product Details

Main application
ISO K
ISO N
ISO P
Additional application
ISO H
ISO M
ISO O
ISO S

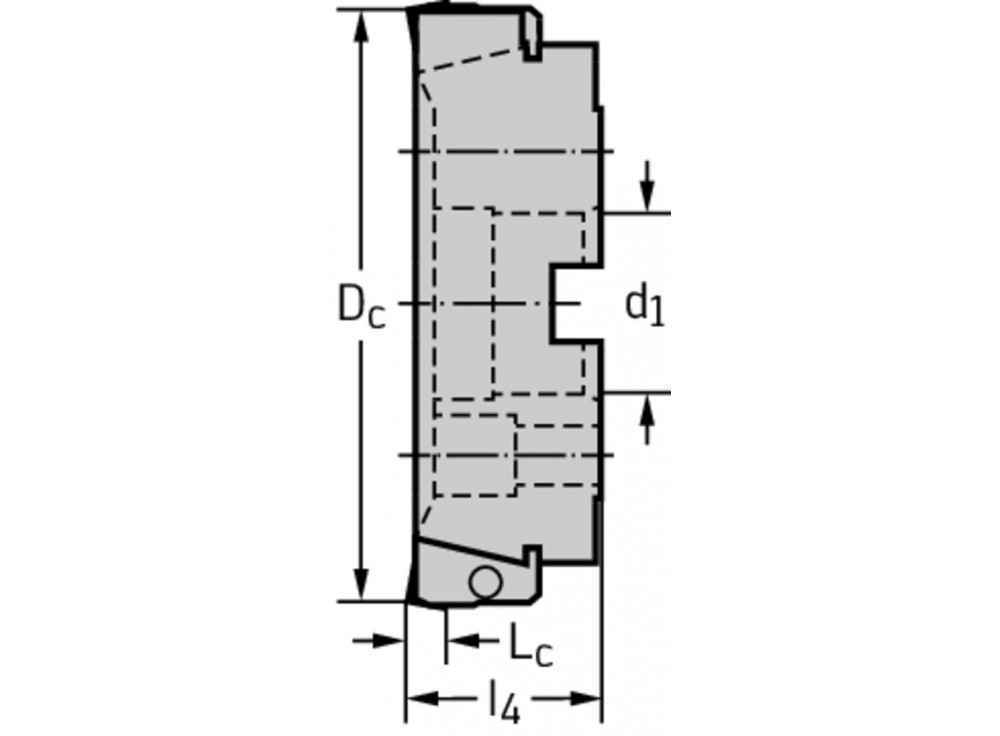

Cutting edge diameter [D c]
160 mm
Cutting edge length [L c]
12 mm
Maximum projection length [l 4]
63 mm
Number of indexable inserts [No. of indexable inserts]
10
Connection diameter [d 1]
40/40 B mm
Weight of item
5,5 kg
Number of teeth [Z]
10
Weight
5.5 kg
