Image may not correspond to reality

124518P.260

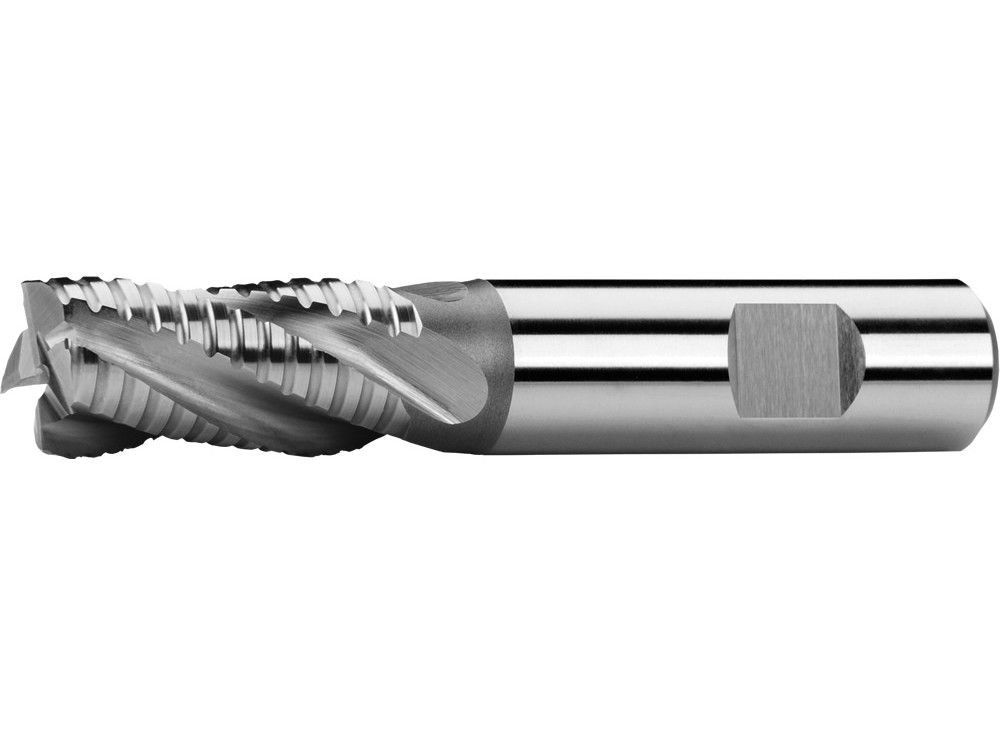

End mills short, 1 tooth cut over centre, 30°, type NR-F, code 124518P, diameter 26 mm

Reference: 124518P.260

Brand: ZPS-FN

€99.38

€99.38 tax incl.

within 1 week

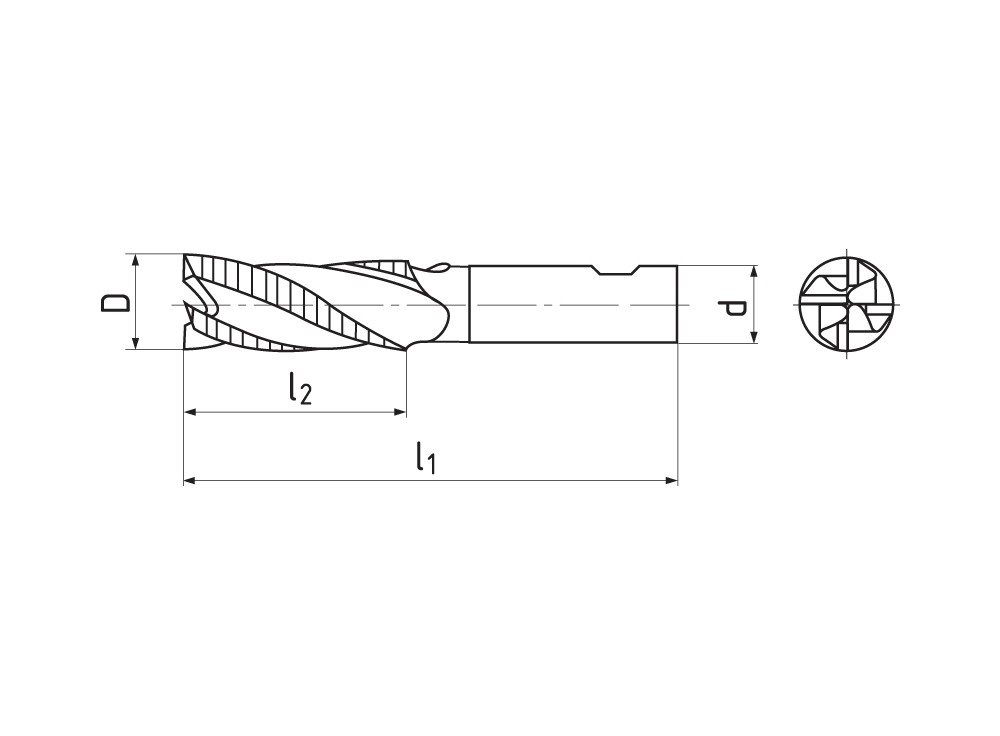

Cutting edge diameter [D]: 26 mm
Gauge type: NR-F
Norm: DIN 844
Number of teeth [Z]: 4
Clamping shank diameter [d]: 25 mm
Total length [l1]: 121 mm
Cutting edge length [l2]: 45 mm
Machined materials: K.1 | Cast iron (≤ 240 HB)
M.2 | Corrosion- and acid-proof steels (750 - 850 N/mm²)
N.2 | Aluminium cast alloys Si (Si ≤ 12%)
P.1 | Free-cutting steels, general construction steels
P.2 | General construction steels, steel castings
P.4 | Heat treatable steels
P.5 | Tool steels high alloyed
Weight: 0.42 kg
