AK300.7.063.100.10.HSK
Image may not correspond to reality
  • AK300.7.063.100.10.HSK
  • AK300.7.063.100.10.HSK

AK300.7.063.100.10.HSK

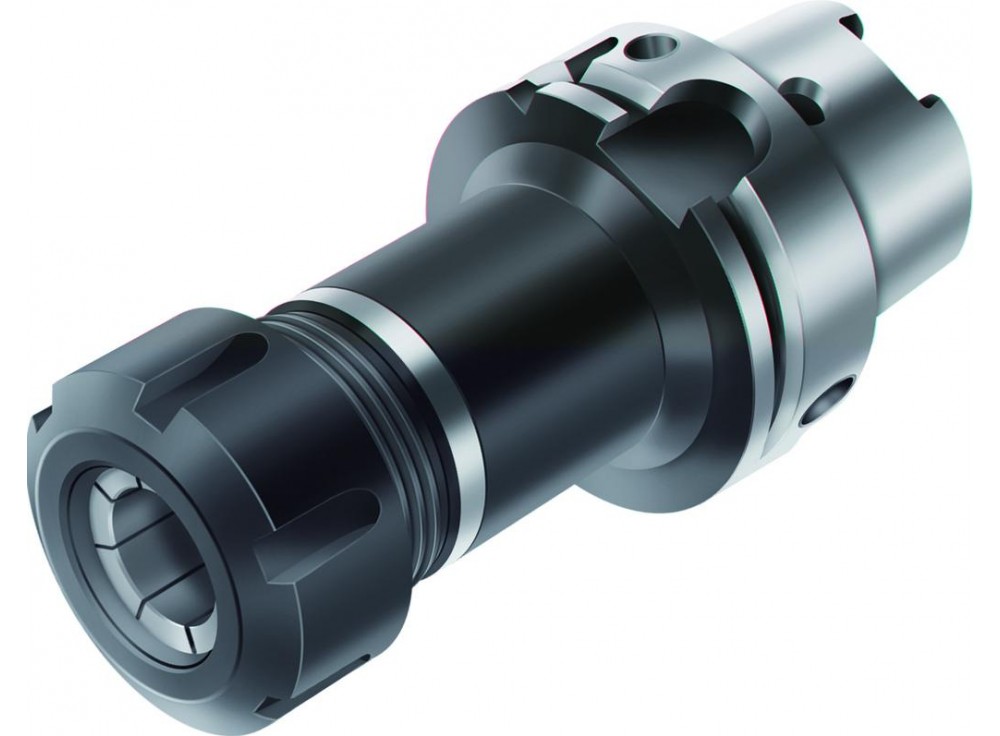

DIN 69893-1 A ER collet chuck AK300...HSK
AK300.7.063.100.10.HSK
Walter AG
€220.50

€220.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488

DIN 69893-1 A ER collet chuck AK300...HSK • metric • For ER collets in accordance with DIN 6499/ISO15488 • d1=63 • d11=ER16

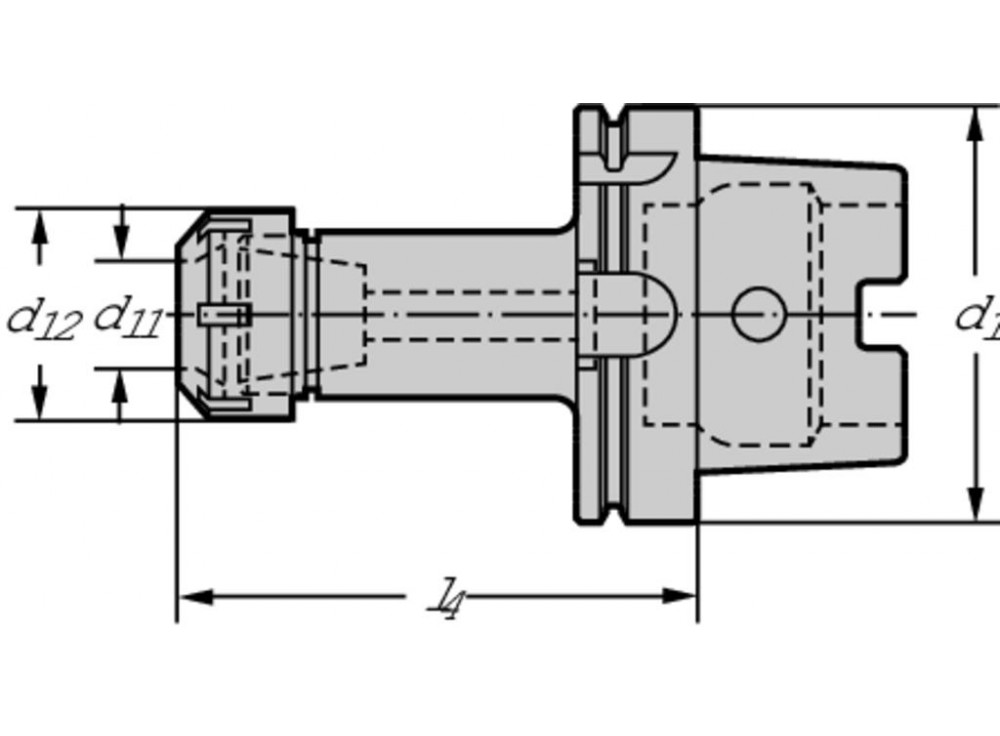

Product Details

Connection diameter [d 11]
1-10
Body diameter [d 12]
28 mm
Collets
ER16
Maximum projection length [l 4]
100 mm
Connection size code [d 1]
HSK-A63
Weight of item
0,96 kg
Weight
0.96 kg
