AK300.S50.105.ER32
Image may not correspond to reality
  • AK300.S50.105.ER32
  • AK300.S50.105.ER32

AK300.S50.105.ER32

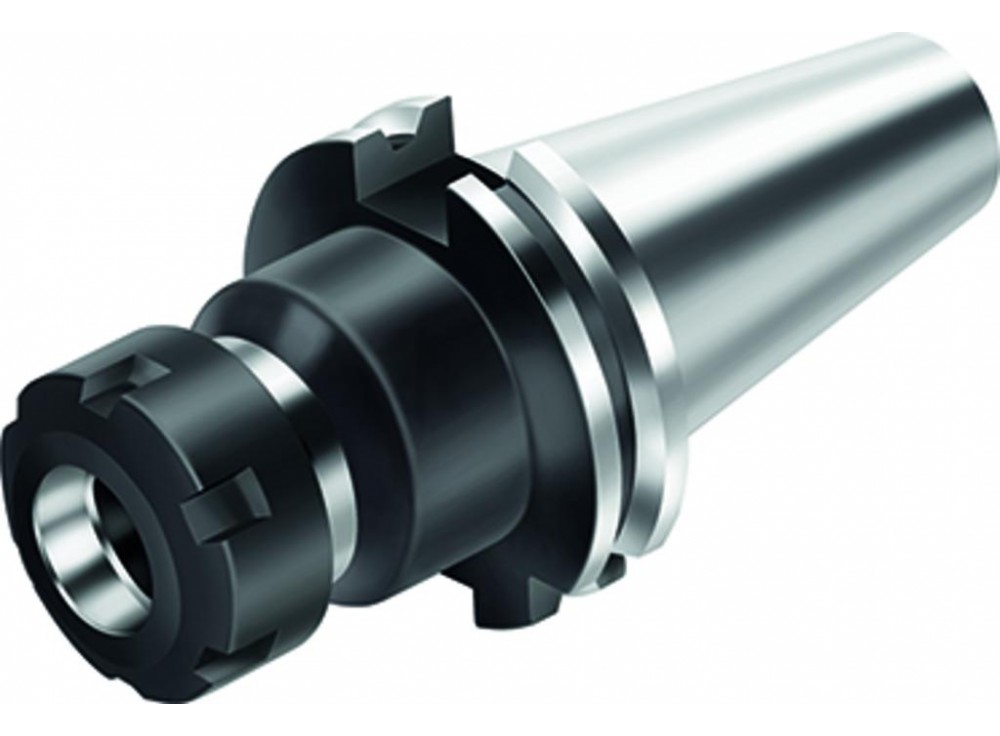

DIN 69871 AD/B ER collet chuck with internal cooling
AK300.S50.105.ER32
Walter AG
€255.50

€255.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-1

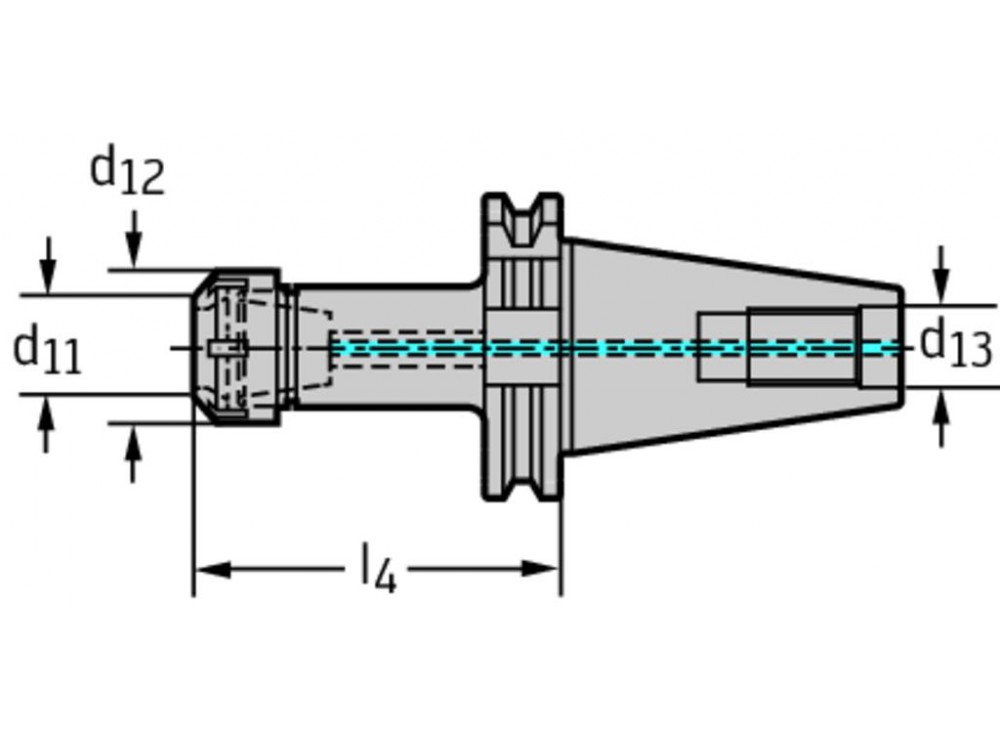

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=50 • d11=ER32

Product Details

Connection diameter [d 11]
1-20
Body diameter [d 12]
50 mm
Collets
ER32
Pull stud, thread size [d 13]
M24
Maximum projection length [l 4]
105 mm
Connection size code [d 1]
SK50
Weight of item
3,62 kg
Weight
3.62 kg
