AK300.S50.100.ER40
Image may not correspond to reality
  • AK300.S50.100.ER40
  • AK300.S50.100.ER40

AK300.S50.100.ER40

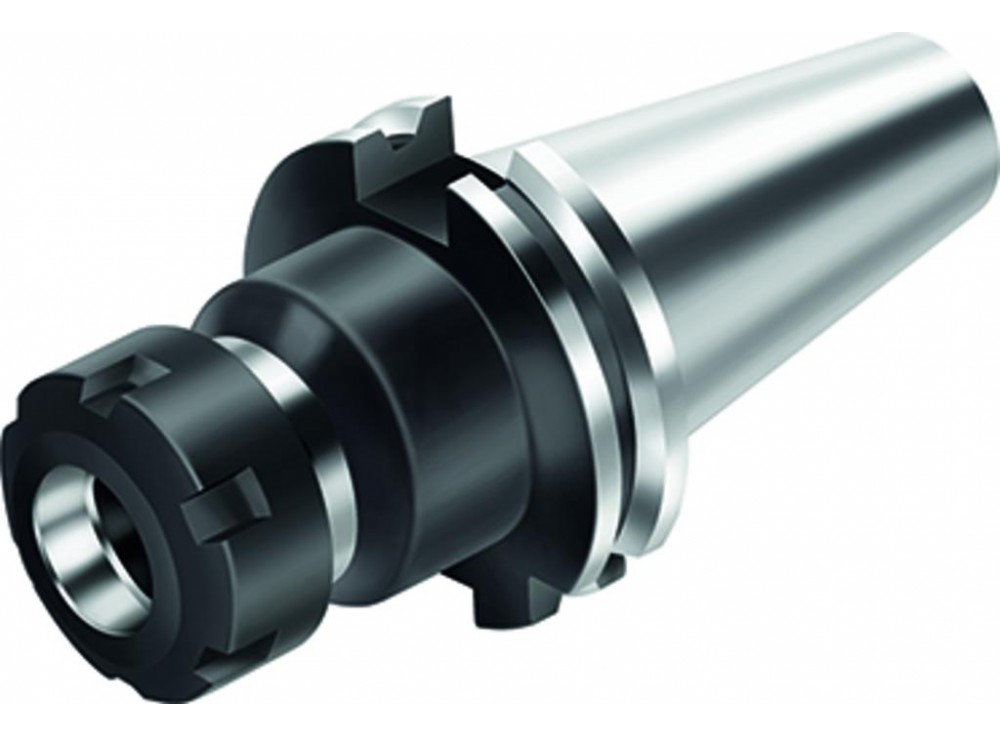

DIN 69871 A ER collet chuck
AK300.S50.100.ER40
Walter AG
€284.38

€284.38 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-1

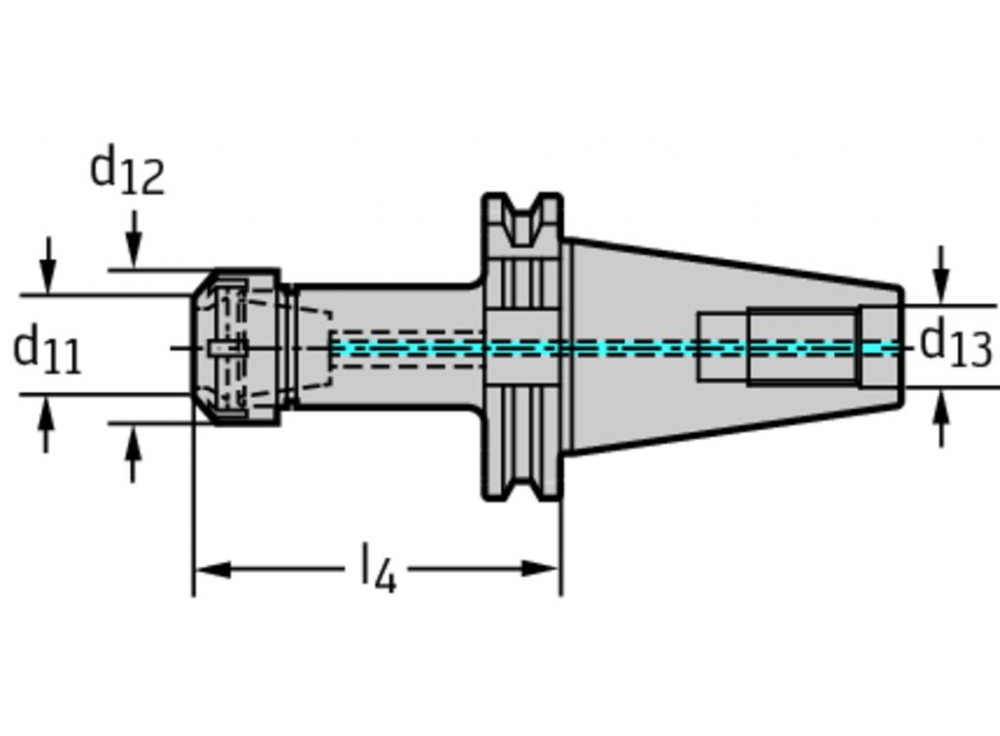

DIN 69871 A ER collet chuck AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=50 • d11=ER40

Product Details

Connection diameter [d 11]
2-26
Body diameter [d 12]
63 mm
Collets
ER40
Pull stud, thread size [d 13]
M24
Maximum projection length [l 4]
100 mm
Connection size code [d 1]
SK50
Weight of item
4,01 kg
Weight
4.01 kg
