AK300.S50.100.ER20
Image may not correspond to reality
  • AK300.S50.100.ER20
  • AK300.S50.100.ER20

AK300.S50.100.ER20

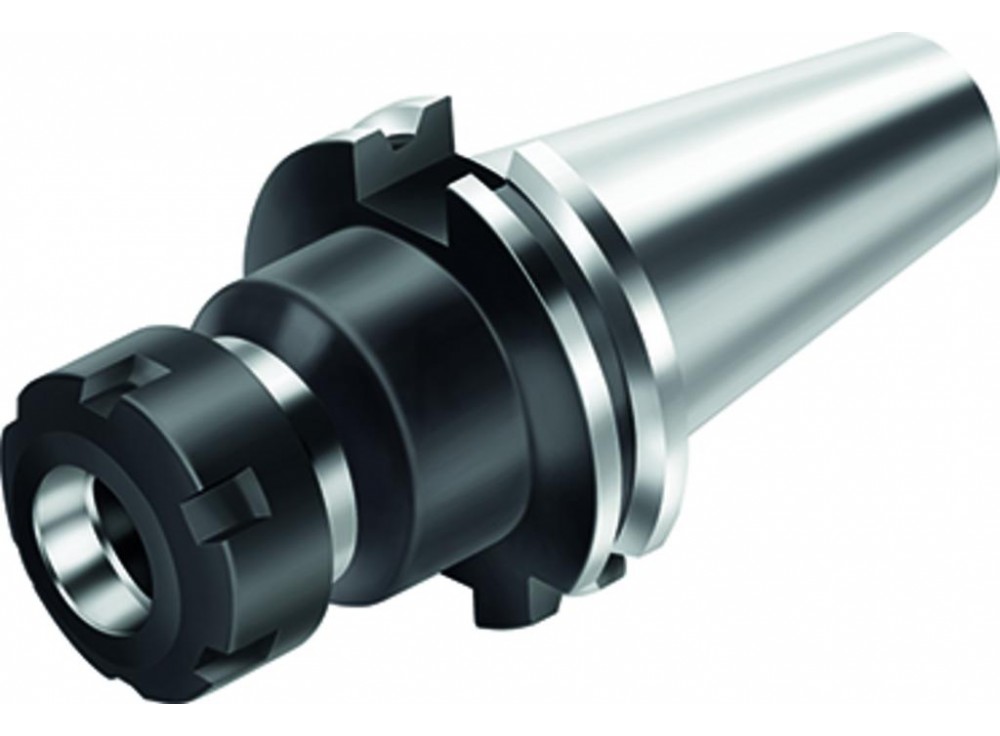

DIN 69871 A ER collet chuck
AK300.S50.100.ER20
Walter AG
€227.50

€227.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-1

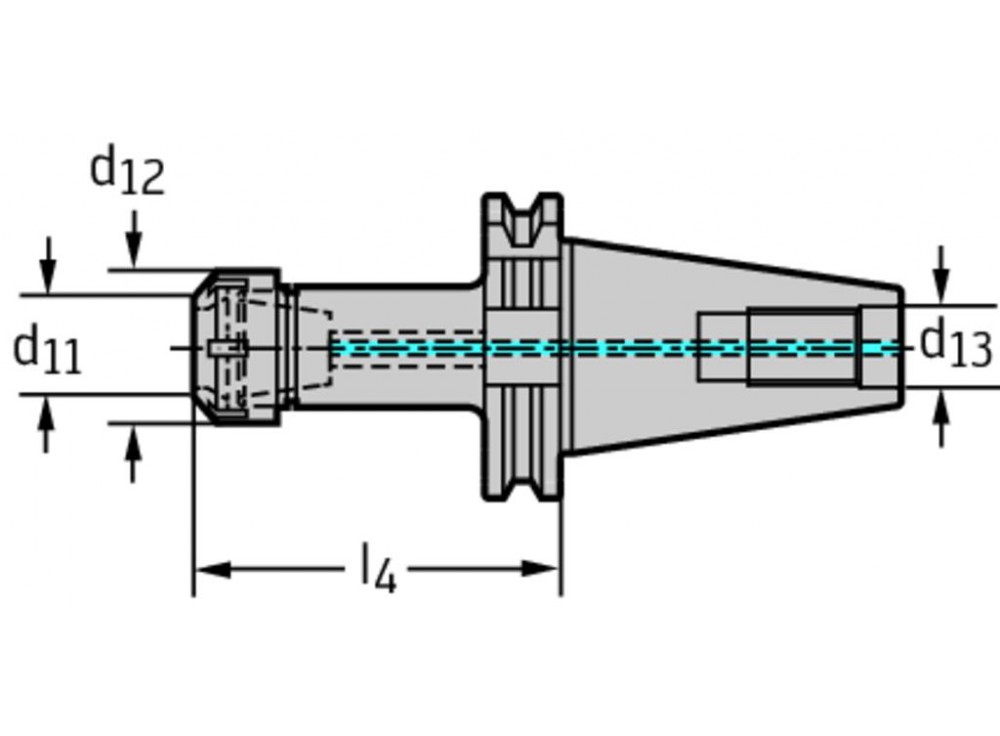

DIN 69871 A ER collet chuck AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=50 • d11=ER20

Product Details

Connection diameter [d 11]
1-13
Body diameter [d 12]
34 mm
Collets
ER20
Pull stud, thread size [d 13]
M24
Maximum projection length [l 4]
100 mm
Connection size code [d 1]
SK50
Weight of item
3,22 kg
Weight
3.217 kg
