AK300.S40.105.ER16
Image may not correspond to reality
  • AK300.S40.105.ER16
  • AK300.S40.105.ER16

AK300.S40.105.ER16

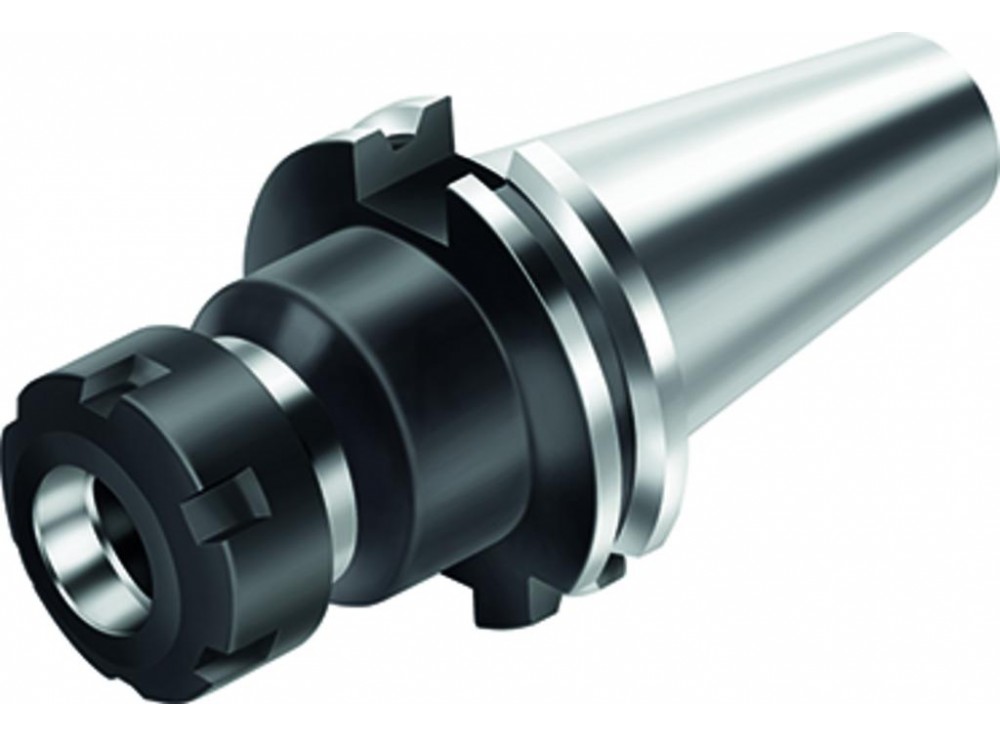

DIN 69871 AD/B ER collet chuck with internal cooling
AK300.S40.105.ER16
Walter AG
€154.00

€154.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-1

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=40 • d11=ER16

Product Details

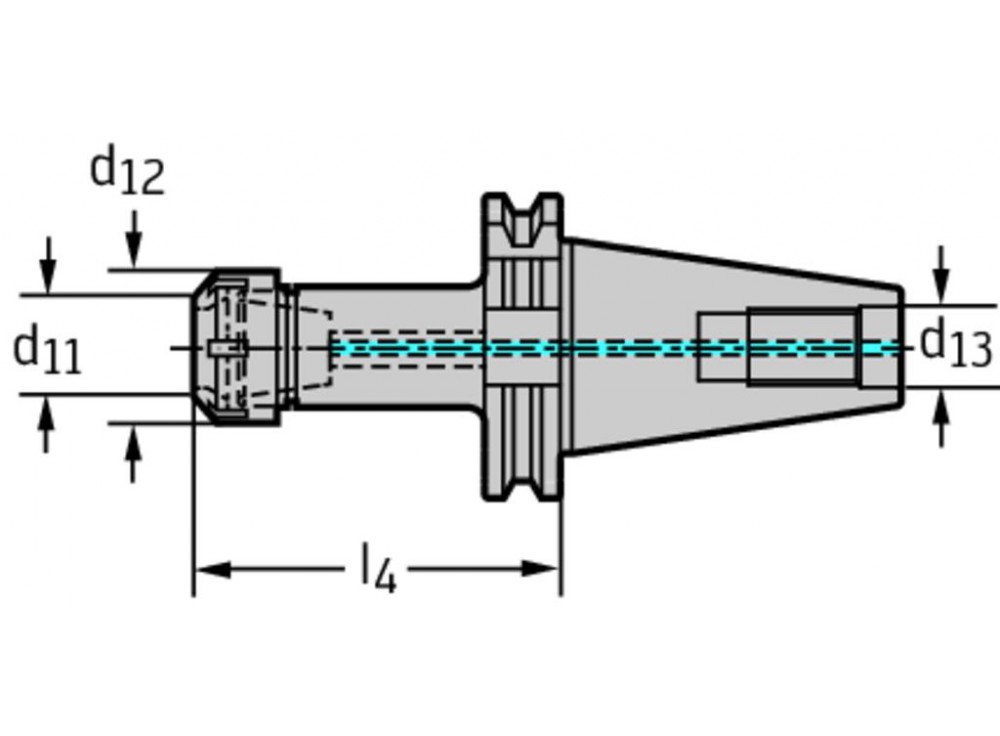

Connection diameter [d 11]
1-10
Body diameter [d 12]
28 mm
Collets
ER16
Pull stud, thread size [d 13]
M16
Maximum projection length [l 4]
105 mm
Connection size code [d 1]
SK40
Weight of item
1,12 kg
Weight
1.12 kg
