C3-SVQBR-13070-11
Image may not correspond to reality
  • C3-SVQBR-13070-11
  • C3-SVQBR-13070-11

C3-SVQBR-13070-11

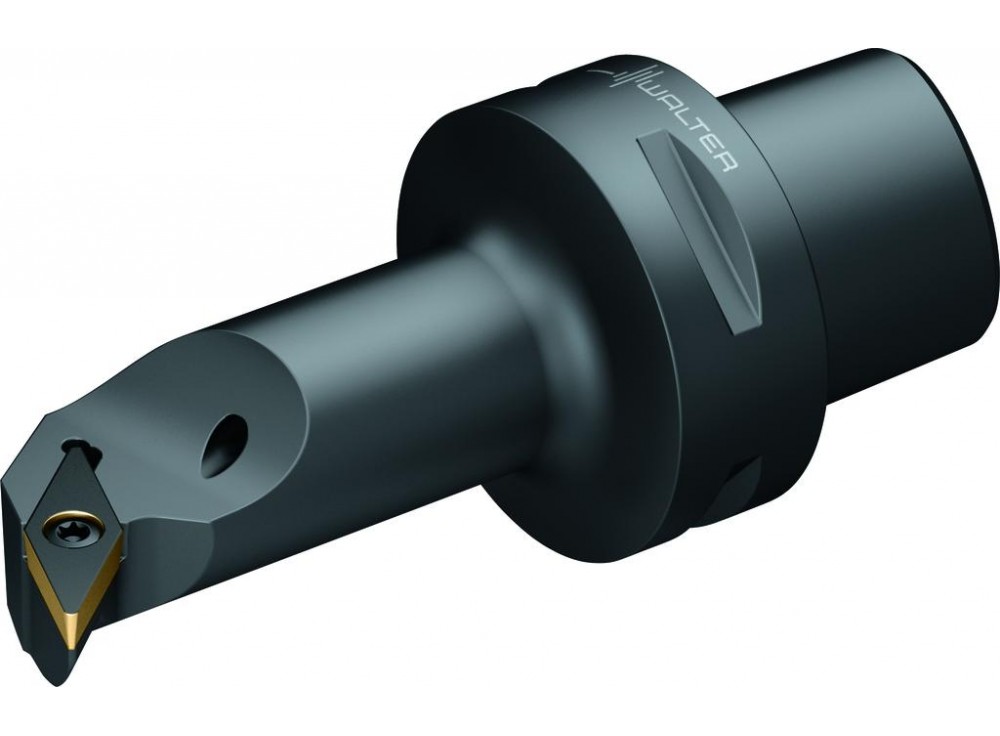

Boring bar – Screw clamping C...
C3-SVQBR-13070-11
Walter AG
€334.90

€334.90 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM

Boring bar – Screw clamping C...-SVQB • Walter Turn • metric • Walter CaptoTM ISO 26623 • Right • C3 • 16mm • rhombic insert • VB .. 1103 ..

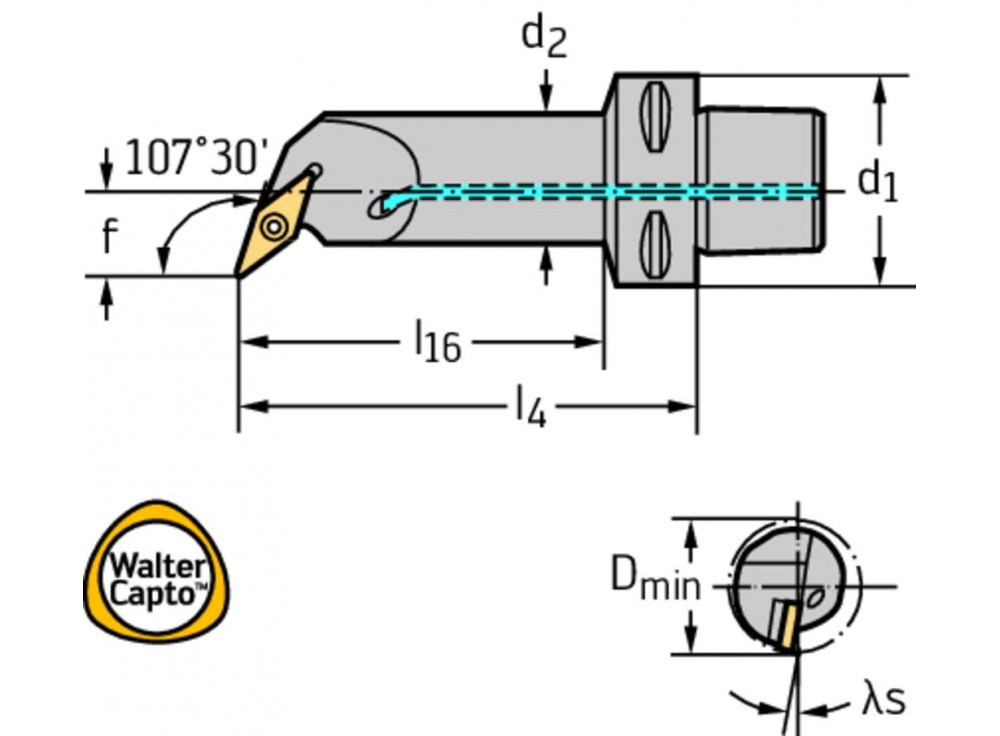

Product Details

Indexable inserts
VB.. 1103..
Minimum hole diameter [D min]
22 mm
Body diameter [d 2]
16 mm
Functional width [f]
13 mm
Orthogonal rake angle [γ]
0 Deg
Inclination angle [λ s]
-6,907 Deg
Useable length [l 16]
53 mm
Functional length [l 4]
70 mm
Connection size code [d 1]
C3
Weight
0.208 kg
