C5-SDUCL-11070-07
Image may not correspond to reality
  • C5-SDUCL-11070-07
  • C5-SDUCL-11070-07

C5-SDUCL-11070-07

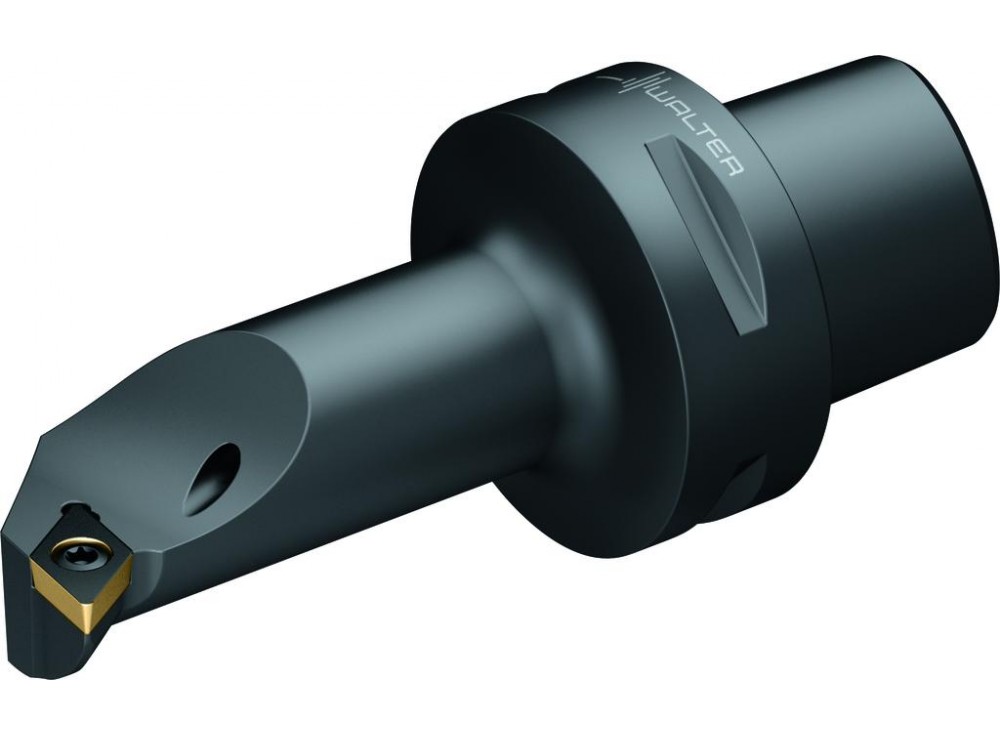

Boring bar – Screw clamping C...
C5-SDUCL-11070-07
Walter AG
€307.70

€307.70 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM

Boring bar – Screw clamping C...-SDUC • Walter Turn • metric • Walter CaptoTM ISO 26623 • Left • C5 • 16mm • rhombic insert • DC .. 0702 ..

Product Details

Indexable inserts
DC.. 0702..

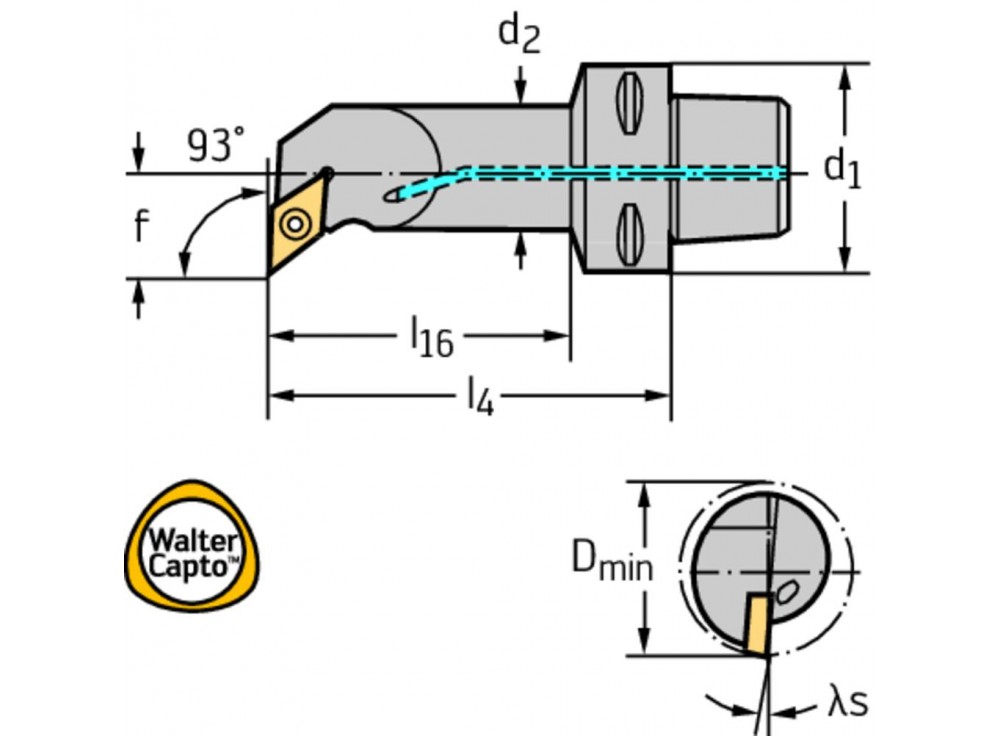

Minimum hole diameter [D min]
20 mm
Body diameter [d 2]
16 mm
Functional width [f]
11 mm
Orthogonal rake angle [γ]
0 Deg
Inclination angle [λ s]
-4,345 Deg
Useable length [l 16]
46 mm
Functional length [l 4]
70 mm
Connection size code [d 1]
C5
Weight
0.558 kg
