A50U-DCLNL16
Image may not correspond to reality
  • A50U-DCLNL16
  • A50U-DCLNL16

A50U-DCLNL16

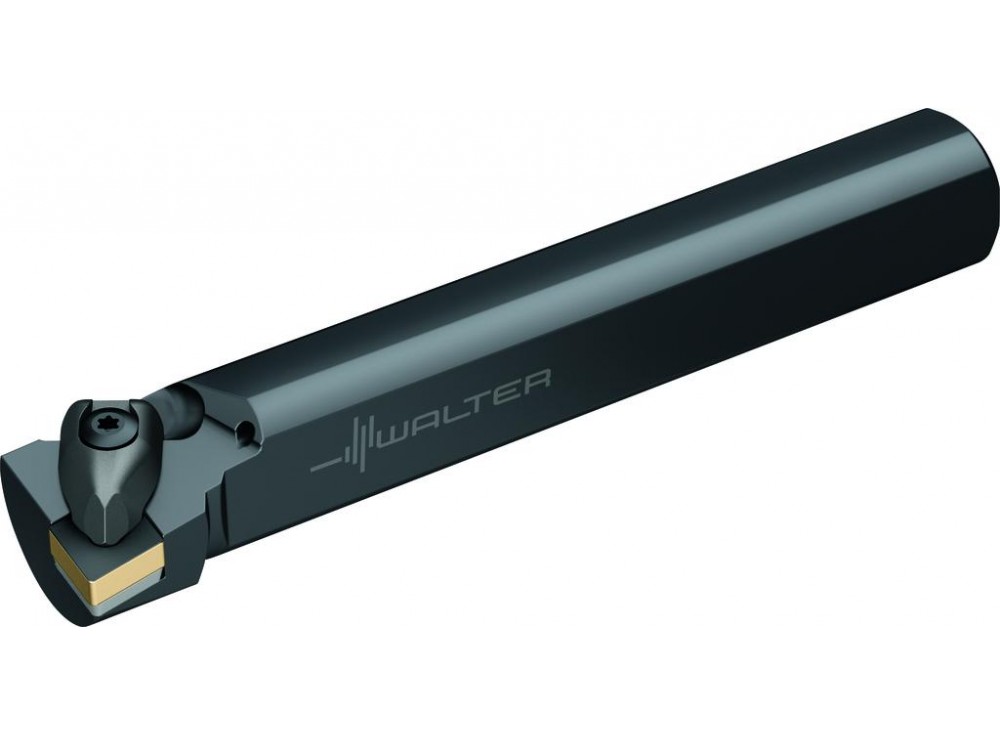

Boring bar – Rigid clamping A...
A50U-DCLNL16
Walter AG
€349.92

€349.92 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • A = Steel version with internal cooling

Boring bar – Rigid clamping A...-DCLN • Walter Turn • metric • Left • 50mm • rhombic insert • CN .. 1606 ..

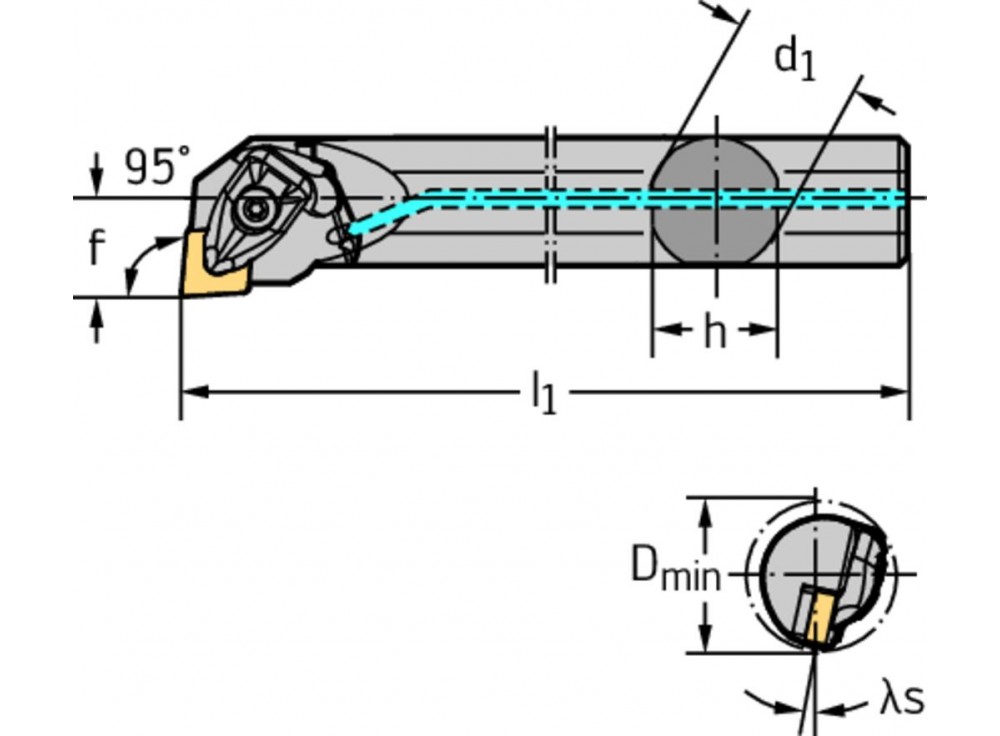

Product Details

Indexable inserts
CN.. 1606..
Boring bar diameter d [d 1]
50 mm
Minimum hole diameter [D min]
63 mm
Functional width [f]
35 mm
Height [h]
47 mm
Orthogonal rake angle [γ]
-6 Deg
Overall length [l 1]
350 mm
Inclination angle [λ s]
-13 Deg
Weight
5.15 kg
