C8-DDMNL-00160-15
Image may not correspond to reality
  • C8-DDMNL-00160-15
  • C8-DDMNL-00160-15

C8-DDMNL-00160-15

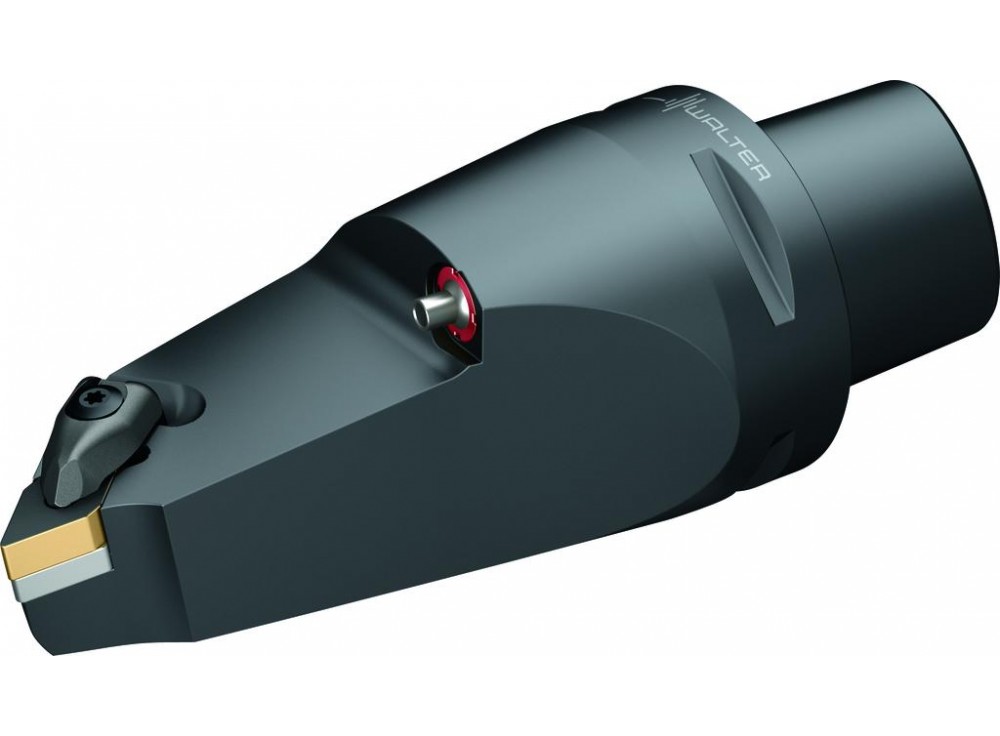

45° turning tools – Rigid clamping C...
C8-DDMNL-00160-15
Walter AG
€384.20

€384.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM
  • Toolholders for turning and milling centres

45° turning tools – Rigid clamping C...-DDMN • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Left • C8 • rhombic insert • DN .. 1506 ..

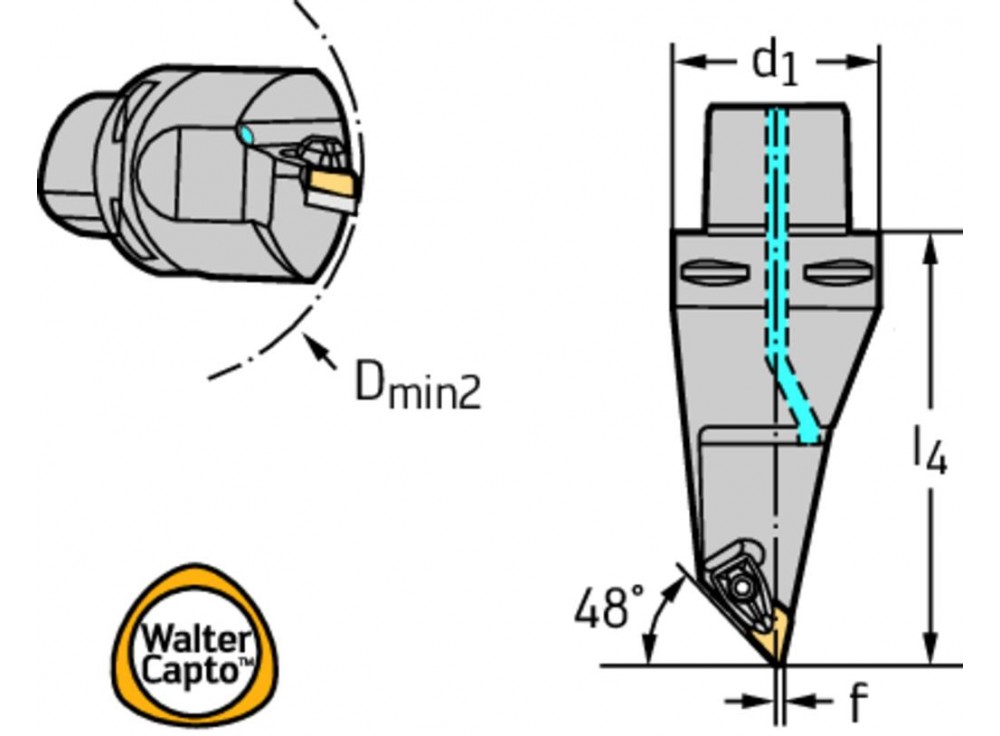

Product Details

Indexable inserts
DN.. 1506..
Minimum hole diameter [D min2]
120 mm
Functional width [f]
0,5 mm
Orthogonal rake angle [γ]
-5 Deg
Inclination angle [λ s]
-6 Deg
Functional length [l 4]
160 mm
Connection size code [d 1]
C8
Weight
4.026 kg
