C5-DVJNL-35065-16
Image may not correspond to reality
  • C5-DVJNL-35065-16
  • C5-DVJNL-35065-16

C5-DVJNL-35065-16

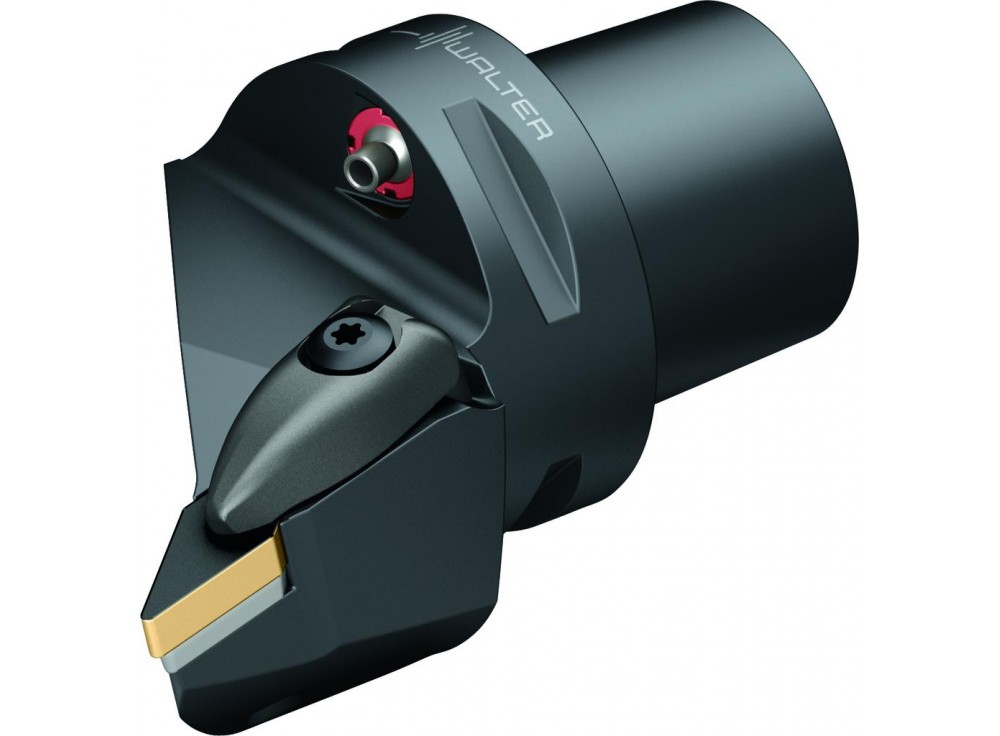

Turning tools – Rigid clamping C...
C5-DVJNL-35065-16
Walter AG
€221.00

€221.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM

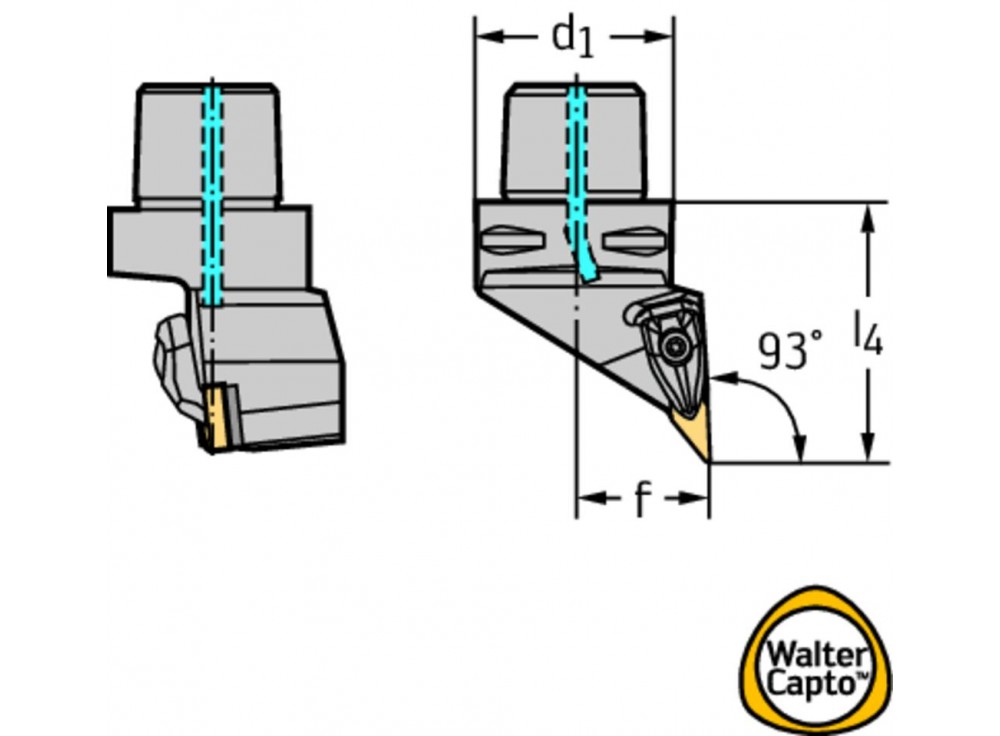

Turning tools – Rigid clamping C...-DVJN • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Left • C5 • rhombic insert • VN .. 1604 ..

Product Details

Indexable inserts
VN.. 1604..
Minimum diameter [D min]
65 mm
Minimum hole diameter [D min2]
170 mm
Functional width [f]
35 mm
Orthogonal rake angle [γ]
-4 Deg
Inclination angle [λ s]
-13 Deg
Functional length [l 4]
65 mm
Connection size code [d 1]
C5
Weight
0.718 kg
