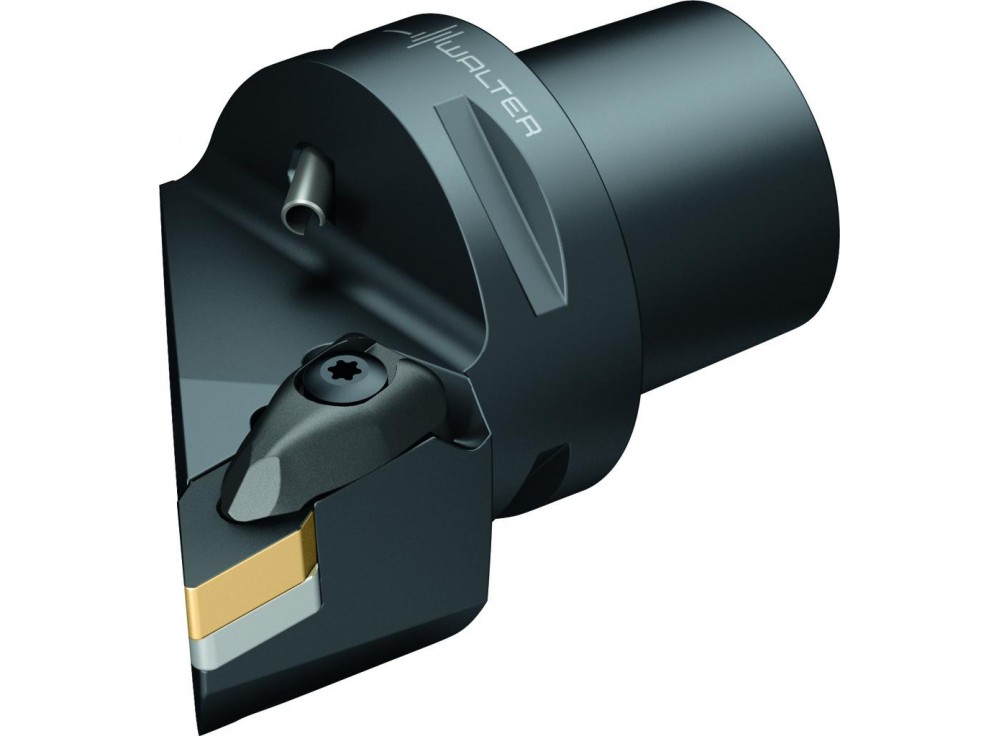

C5-DDJNR-35060-15
Image may not correspond to reality
  • C5-DDJNR-35060-15
  • C5-DDJNR-35060-15

C5-DDJNR-35060-15

Turning tools – Rigid clamping C...
C5-DDJNR-35060-15
Walter AG
€221.00

€221.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Walter CaptoTM

Turning tools – Rigid clamping C...-DDJN • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Right • C5 • rhombic insert • DN .. 1506 ..

Product Details

Indexable inserts
DN.. 1506..

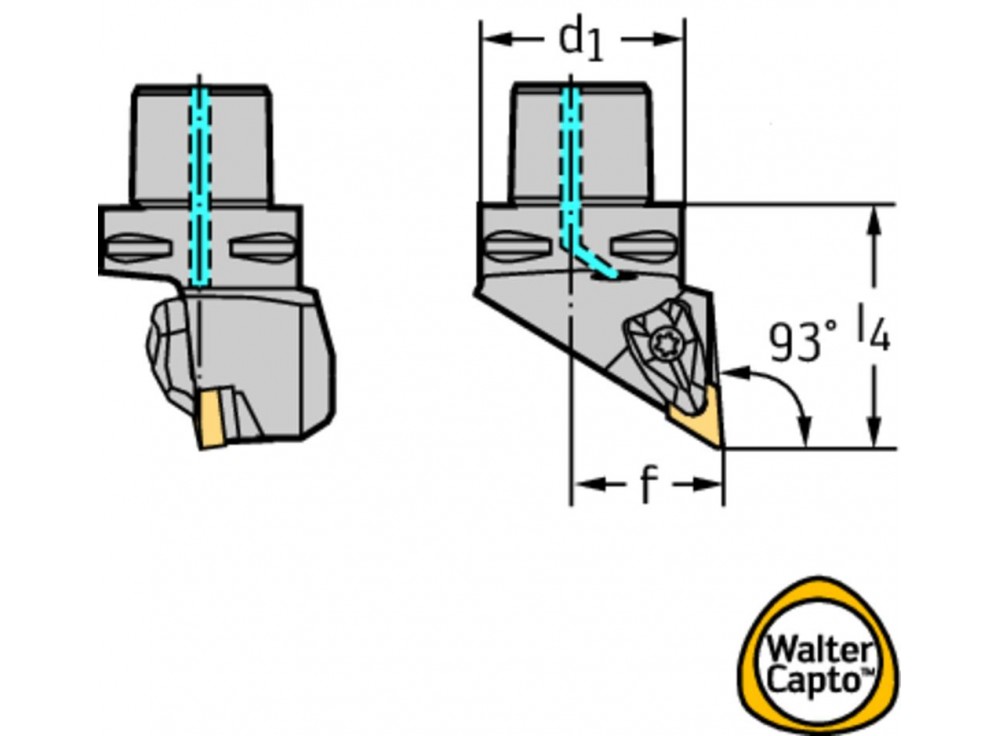

Minimum diameter [D min]
110 mm
Minimum hole diameter [D min2]
165 mm
Functional width [f]
35 mm
Orthogonal rake angle [γ]
-6 Deg
Inclination angle [λ s]
-7 Deg
Functional length [l 4]
60 mm
Connection size code [d 1]
C5
Weight
0.727 kg
