A32T-PCLNL12
Image may not correspond to reality
  • A32T-PCLNL12
  • A32T-PCLNL12

A32T-PCLNL12

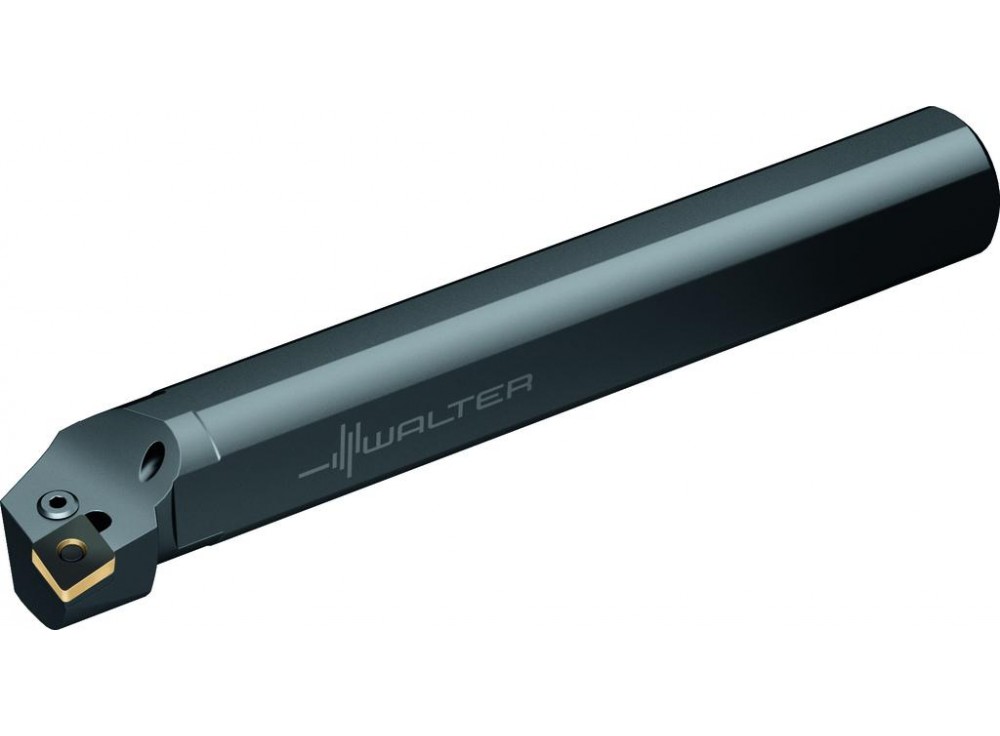

Boring bar – Lever clamping A...
A32T-PCLNL12
Walter AG
€257.58

€257.58 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • A = Steel version with internal cooling

Boring bar – Lever clamping A...-PCLN • Walter Turn • metric • Left • 32mm • rhombic insert • CN .. 1204 ..

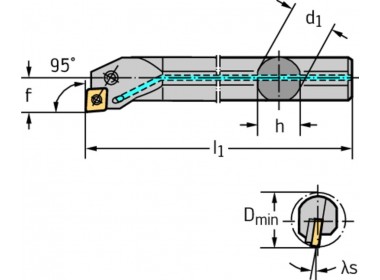

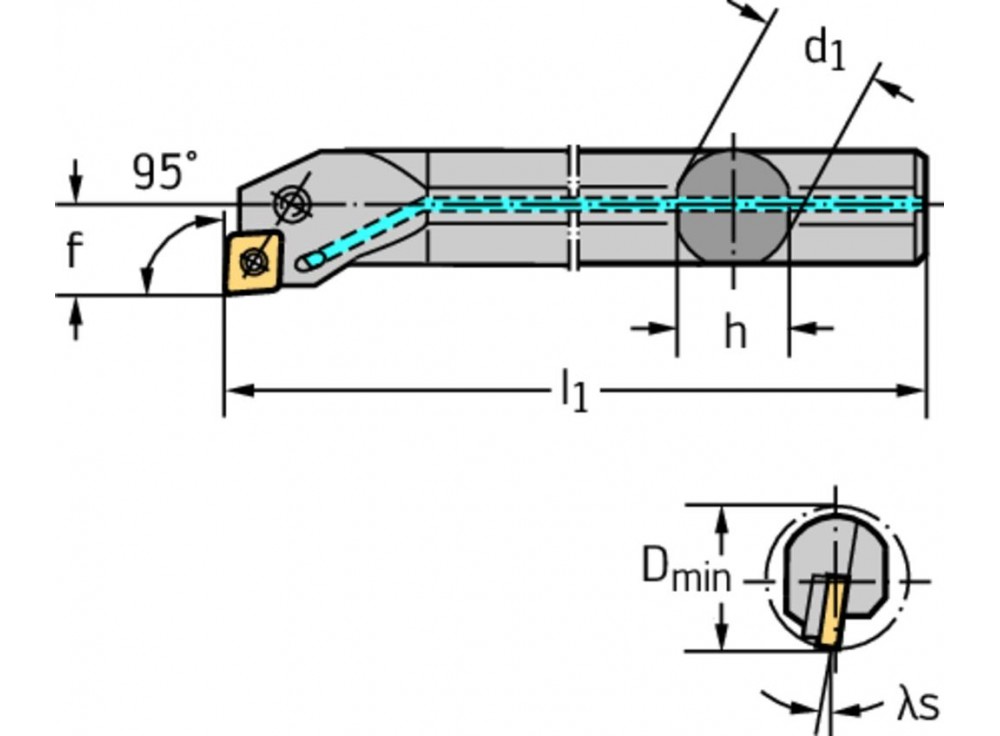

Product Details

Indexable inserts
CN.. 1204..
Boring bar diameter d [d 1]
32 mm
Minimum hole diameter [D min]
40 mm
Functional width [f]
22 mm
Height [h]
30 mm
Orthogonal rake angle [γ]
-6 Deg
Overall length [l 1]
300 mm
Inclination angle [λ s]
-11 Deg
Weight
1.671 kg
