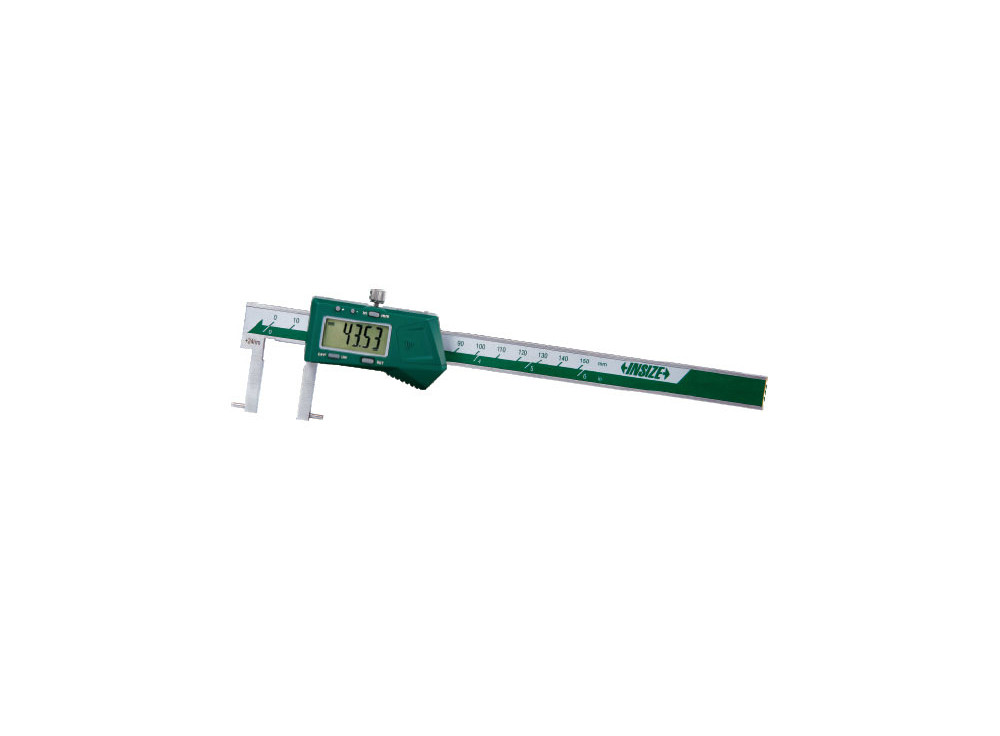

INSIZE 1121 - Digital Inside Point Caliper
- Measure groove diameter
- Resolution: 0.01 mm/0.0005"
- Buttons: on/off, set, mm/inch, preset (+, -)
- Automatic power off, move the digital unit to turn on power
- Battery CR2032
- Data output
- Made of stainless steel
- Optional accessory: depth stop(code 6143, for calipers with c=16 mm)
- Preset (no need to add the width of the jaws on the reading), with data interface
- Data output cable (optional) 7315-21, 7302-21
€161.00 - €561.00
€161.00 - €561.00 tax incl.
Delivery time on request
Please contact us by email at
eshop@toolbox.sk
info
This product is available only for Slovakia
Filter By:

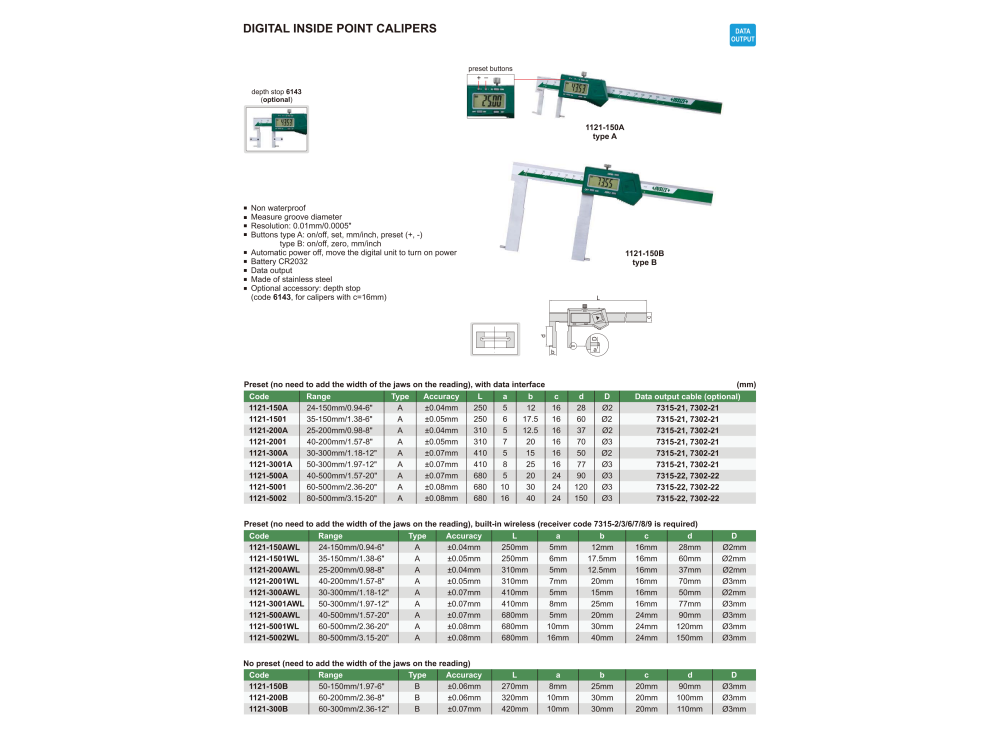

| Reference | Measuring range | Measuring range (inch) | Resolution (mm/inch) | Accuracy | Length [L] | Data output cable (optional) | Type | Weight | Availability | Price (tax excl.) | 1121-150A | 24 - 150 mm | 0.94 - 6" | 0.01 mm/0.0005" | ±0.04 mm | 250 mm | 7315 - 21, 7302 - 21 | A | 0.522 kg | in stock at the supplier | €161.00 |
|
1121-1501 | 35 - 150 mm | 1.38 - 6" | 0.01 mm/0.0005" | ±0.05 mm | 250 mm | 7315 - 21, 7302 - 21 | A | 0.537 kg | in stock at the supplier | €226.00 |
|
1121-200A | 25 - 200 mm | 0.98 - 8" | 0.01 mm/0.0005" | ±0.04 mm | 310 mm | 7315 - 21, 7302 - 21 | A | 0.715 kg | in stock at the supplier | €171.00 |
|
1121-2001 | 40 - 200 mm | 1.57 - 8" | 0.01 mm/0.0005" | ±0.05 mm | 310 mm | 7315 - 21, 7302 - 21 | A | 0.766 kg | in stock at the supplier | €306.00 |
|
1121-300A | 30 - 300 mm | 1.18 - 12" | 0.01 mm/0.0005" | ±0.07 mm | 410 mm | 7315 - 21, 7302 - 21 | A | 1.556 kg | in stock at the supplier | €328.00 |
|
1121-3001A | 50 - 300 mm | 1.97 - 12" | 0.01 mm/0.0005" | ±0.07 mm | 410 mm | 7315 - 21, 7302 - 21 | A | 1.652 kg | in stock at the supplier | €306.00 |
|
1121-500A | 40 - 500 mm | 1.57 - 20" | 0.01 mm/0.0005" | ±0.07 mm | 680 mm | 7315 - 22, 7302 - 22 | A | 3.231 kg | in stock at the supplier | €507.00 |
|
1121-5001 | 60 - 500 mm | 2.36 - 20" | 0.01 mm/0.0005" | ±0.08 mm | 680 mm | 7315 - 22, 7302 - 22 | A | 3.989 kg | in stock at the supplier | €521.00 |
|
1121-5002 | 80 - 500 mm | 3.15 - 20" | 0.01 mm/0.0005" | ±0.08 mm | 680 mm | 7315 - 22, 7302 - 22 | A | 4.306 kg | in stock at the supplier | €561.00 |
|
1121-150B | 50 - 150 mm | 1.97 - 6" | 0.01 mm/0.0005" | ±0.06 mm | 270 mm | B | 0.957 kg | in stock at the supplier | €256.00 |
|
1121-200B | 60 - 200 mm | 1.57 - 8" | 0.01 mm/0.0005" | ±0.06 mm | 320 mm | B | 1.15 kg | in stock at the supplier | €350.00 |
|
1121-300B | 60 - 300 mm | 2.36 - 12" | 0.01 mm/0.0005" | ±0.07 mm | 420 mm | B | 1.5 kg | in stock at the supplier | €394.00 |
|
|---|
Product Details
- Gauge type
- digital
- Buttons
- mm/inch
on/off - Battery
- CR2032
- Gauge material
- stainless steel
- Automatic shutdown
- Yes
- Automatic switching on after movement
- Yes
- Data output
- Yes
INSIZE 1121 - Digital Inside Point Caliper
- Measure groove diameter
- Resolution: 0.01 mm/0.0005"
- Buttons: on/off, set, mm/inch, preset (+, -)
- Automatic power off, move the digital unit to turn on power
- Battery CR2032
- Data output
- Made of stainless steel
- Optional accessory: depth stop(code 6143, for calipers with c=16 mm)
- Preset (no need to add the width of the jaws on the reading), with data interface
- Data output cable (optional) 7315-21, 7302-21
