MC213-08.0A2L100C-WJ30TF
Image may not correspond to reality
  • MC213-08.0A2L100C-WJ30TF
  • MC213-08.0A2L100C-WJ30TF

MC213-08.0A2L100C-WJ30TF

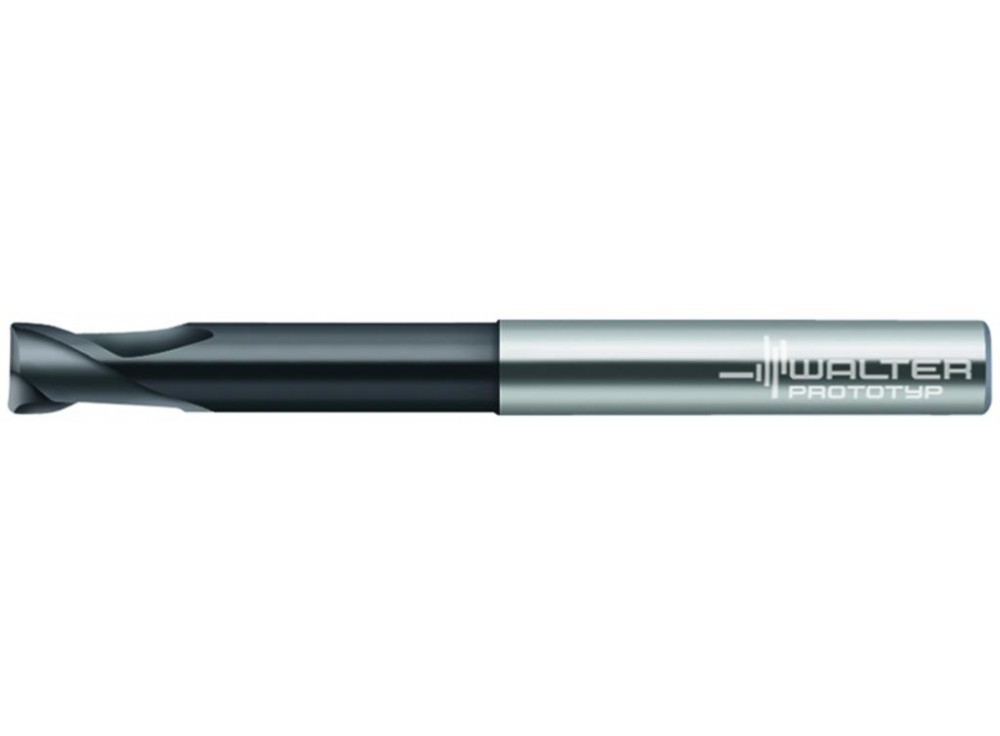

Solid carbide shoulder/slot mills

Advance

MC213-08.0A2L100C-WJ30TF
4042446256081
Walter AG
€76.47

€76.47 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Long reach
  • Type HSC 30, long

Solid carbide shoulder/slot mills MC213 • Advance • DIN 6535 HA shank • metric • flute helix angle 30° • Long reach • Type HSC 30, long • centre cutting capability • WJ30TF • Dc=8mm • R=1mm • Z=2

Product Details

Main application
ISO P
Additional application
ISO K
ISO M
ISO S

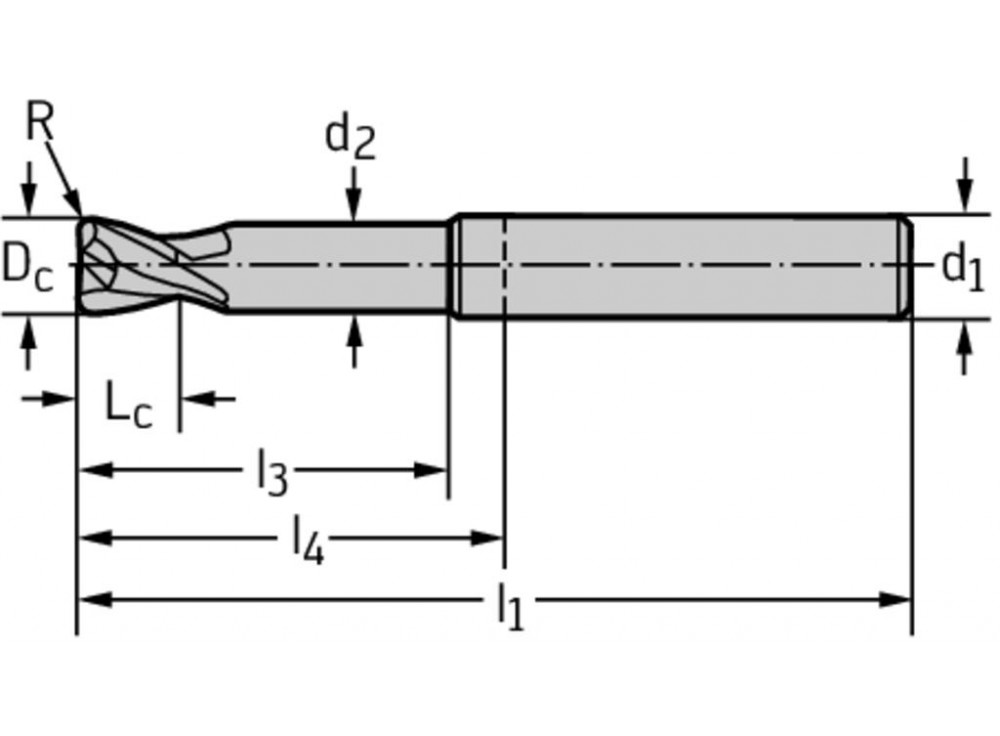

Cutting edge diameter [D c]
8 mm
Neck diameter [d 2]
7,6 mm
Cutting edge length [L c]
8 mm
Shank diameter [d 1]
8 mm
Corner radius [r]
1 mm
Overall length [l 1]
80 mm
Useable length [l 3]
29 mm
Functional length [l 4]
44 mm
Number of teeth [Z]
2
Weight
0.058 kg
