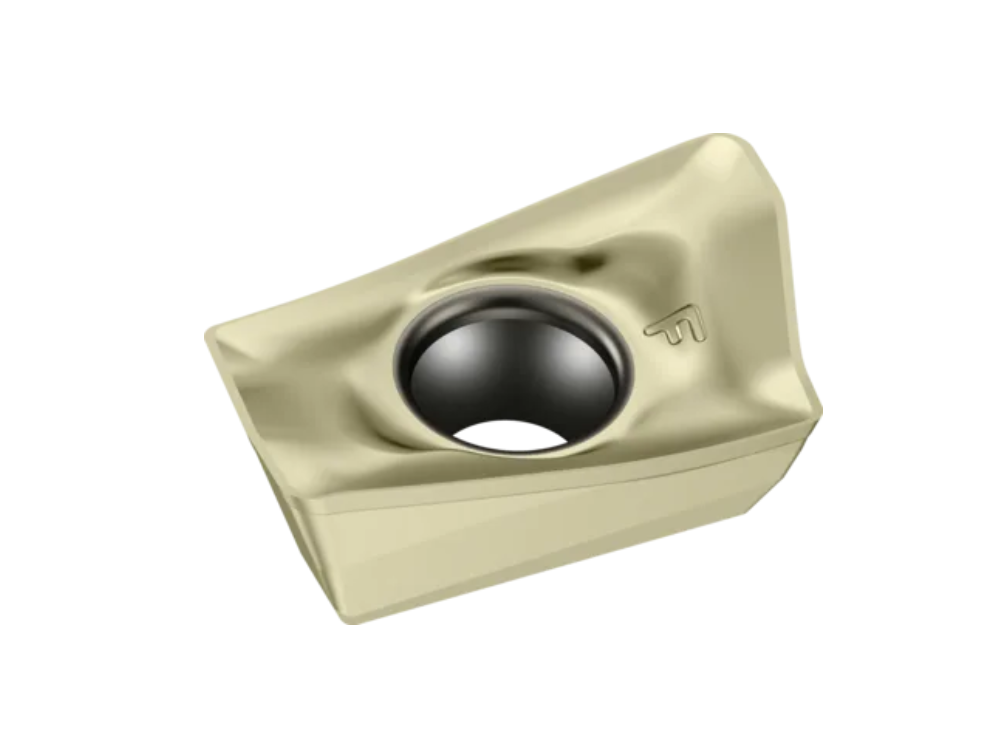

WALTER ADMT120412R-F56 WSM35S - Positive rhombic
Image may not correspond to reality
  • WALTER ADMT120412R-F56 WSM35S - Positive rhombic
  • ADMT120412R-F56 WSM35S

ADMT120412R-F56 WSM35G

Positive rhombic

ADMT120412R-F56 WSM35G
Walter AG
€12.78

€12.78 tax incl.

within 1 week
Quantity
in stock at the supplier

The minimum purchase order quantity for the product is 10.

Description

  • For Xtra·tec® milling cutters

Positive rhombic ADMT ...-F56 • clearance angle major=15° • WSM35S • Tigertec Silver • Corner radius=1,2mm • wiper edge length=1,2mm

Product Details

Main application
ISO M
ISO S

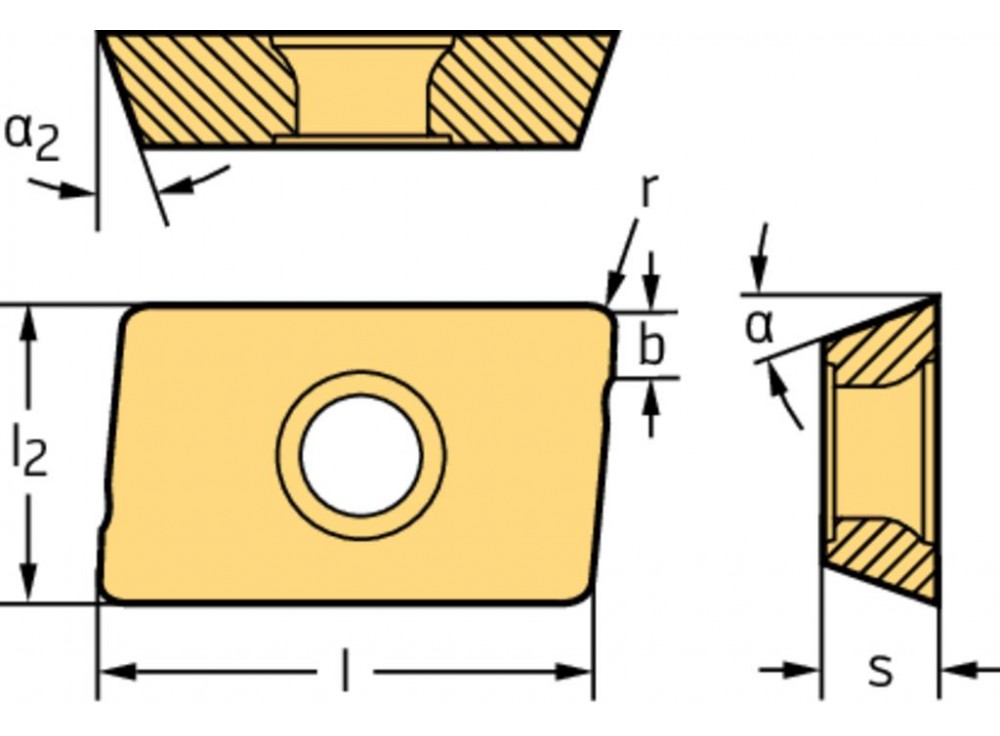

Indexable insert tolerance class [Tolerance class]
M
Indexable insert width [l 2]
8,4 mm
Cutting edge length [l]
13,6 mm
Insert thickness [s]
4,76 mm
Number of cutting edges
2
Minor clearance angle [α 2]
20 Deg
Corner radius [r]
1,2 mm
Wiper cutting edge length [b]
1,2 mm
Clearance angle major [α]
15 Deg
Weight
0.003 kg
