ATUM 36XD3 880-0704..
Image may not correspond to reality
  • ATUM 36XD3 880-0704..
  • ATUM 36XD3 880-0704..

ATUM 36XD3 880-0704..

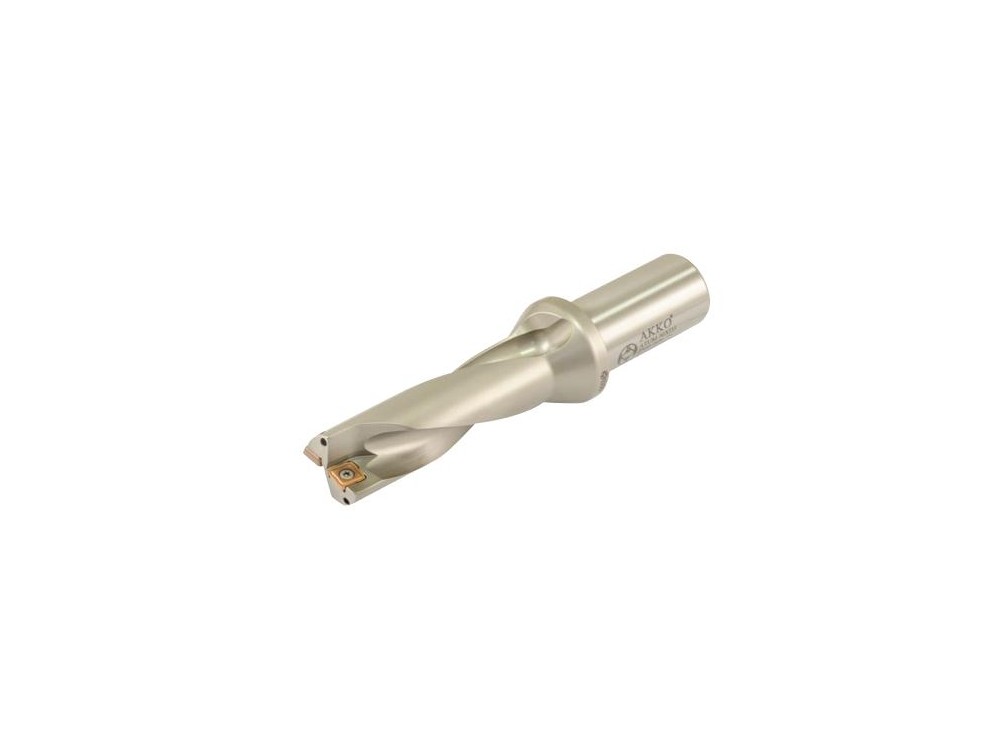

Insert drill - 3xD, diameter 36 mm
ATUM 36XD3 880-0704..
8699459086783
AKKO
€172.20

€172.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Insert drill - ATUM
  • 3xD
  • Diameter: 36 mm
  • Compatible with indexable inserts 880-07...C/P

Product Details

Cutting edge diameter [DC]
36 mm
Drilling depth [LU]
112 mm
Diameter [DCON]
40 mm
Total length [OAL]
209 mm
Indexable inserts
880-07...C/P
Drill depth and diameter ratio
3xD
Clamping length [LS]
70 mm
Maximum projection length [LPR]
139 mm
Screw
3010-M3.5X9
Key
80-T10
Weight
1.553 kg
