M2471.051-B19-05-06
Image may not correspond to reality
  • M2471.051-B19-05-06
  • M2471.051-B19-05-06

M2471.051-B19-05-06

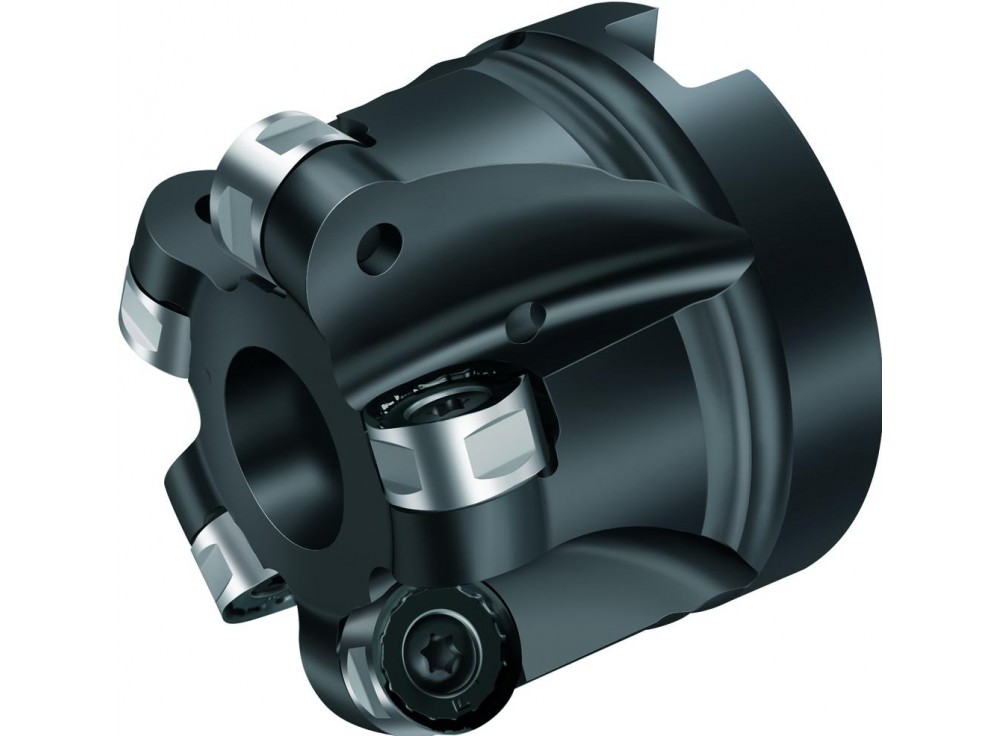

Copy milling cutters with round inserts
M2471.051-B19-05-06
Walter AG
€459.00

€459.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • 8 cutting edges per indexable insert

Copy milling cutters with round inserts M2471 • Parallel bore DIN 138 transverse keyway • inch • RN .. 1206 .. • Dc=39mm • Z=5

Product Details

Main application
ISO M
ISO P
ISO S

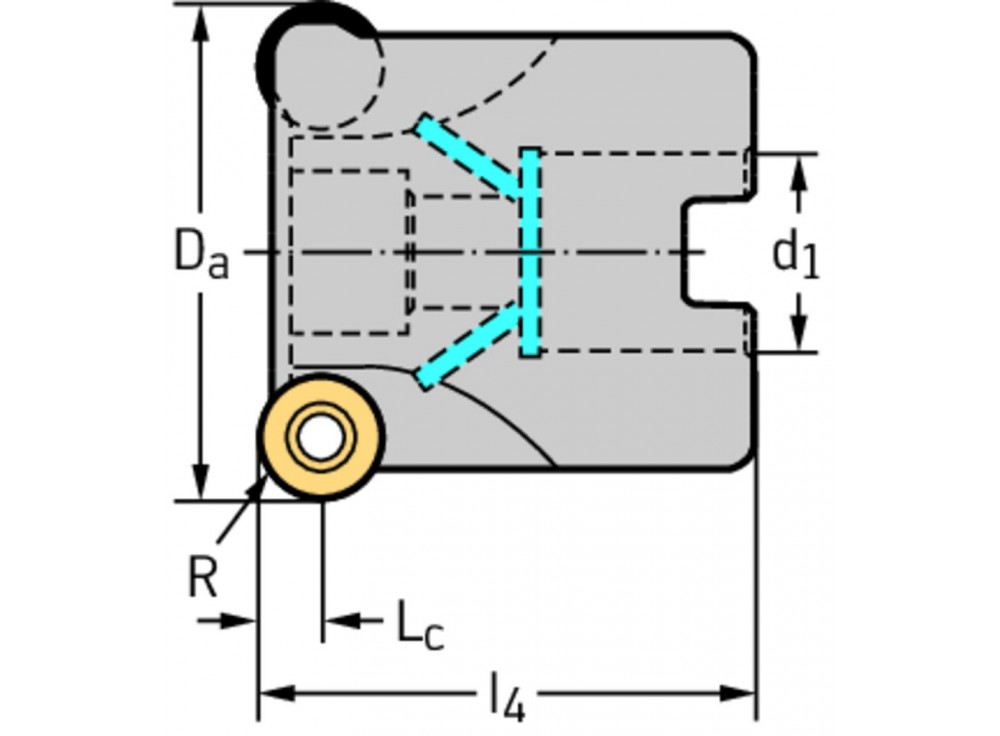

Maximum cutting diameter [D a]
2 inch
Cutting edge length [L c]
0,236 inch
Shank diameter [d 1]
0,75 inch
Corner radius [r]
0,236 inch
Functional length [l 4]
1,5 inch
Number of indexable inserts [No. of indexable inserts]
5
Weight of item
0,3 lbs
Number of teeth [Z]
5
Weight
0.283 kg
