D4140.07-13.00A15-A
Image may not correspond to reality
  • D4140.07-13.00A15-A
  • D4140.07-13.00A15-A

D4140.07-13.00A15-A

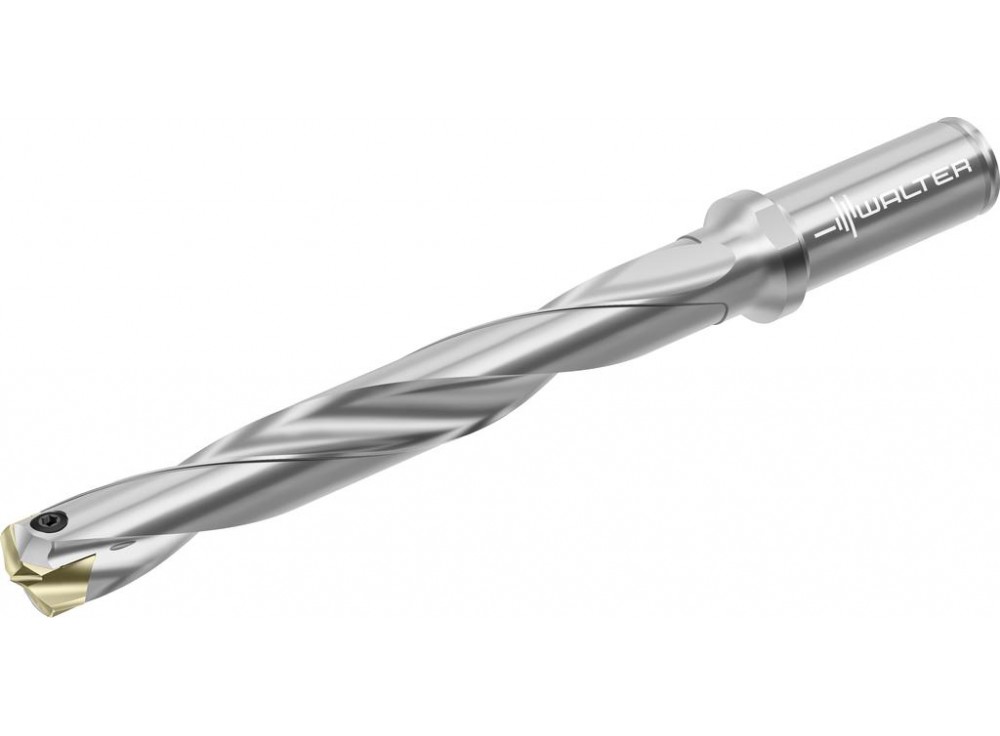

Exchangeable-tip drills
D4140.07-13.00A15-A
Walter AG
€332.50

€332.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Exchangeable-tip drills D4140.07 • Cylindrical shank with collar • inch • 7xD • point angle 140° • Z=2 • Dc=13mm

Product Details

Main application
ISO K
ISO N
ISO P
Additional application
ISO M
ISO S

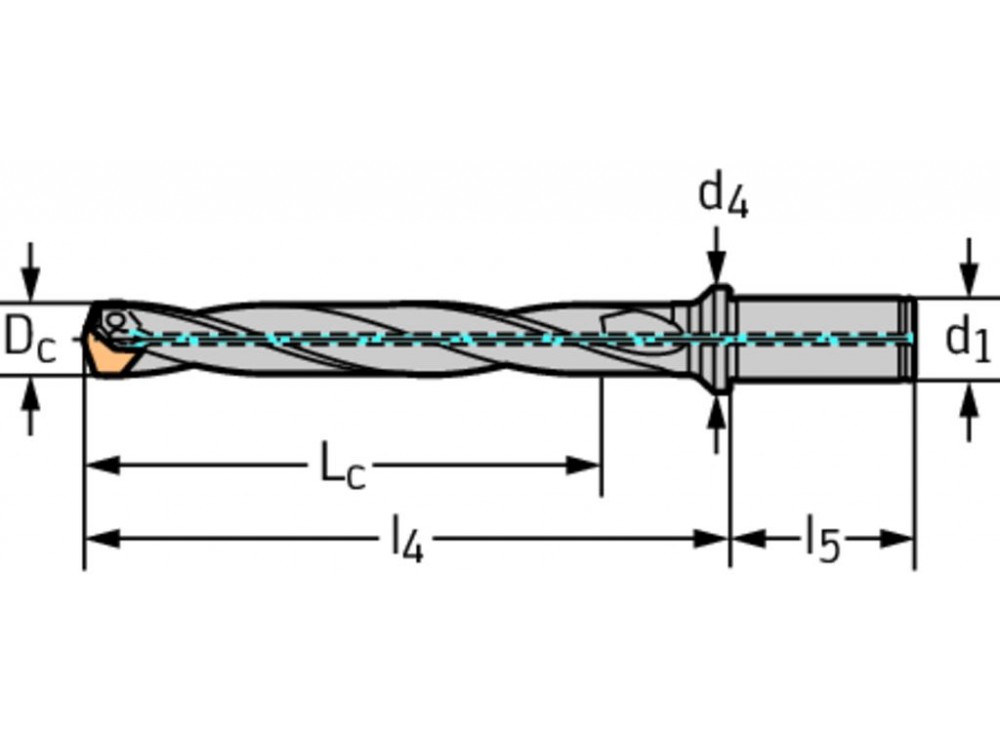

Connection diameter [d 1]
0,625 inch
Cutting edge diameter [D c]
0,512 inch
Flange diameter [d 4]
0,787 inch
Cutting edge length [L c]
3,661 inch
Shank length [l 5]
1,89 inch
Maximum projection length [l 4]
4,882 inch
Number of indexable inserts [No. of indexable inserts]
1
Weight of item
0,18 lbs
Weight
0.184 kg
