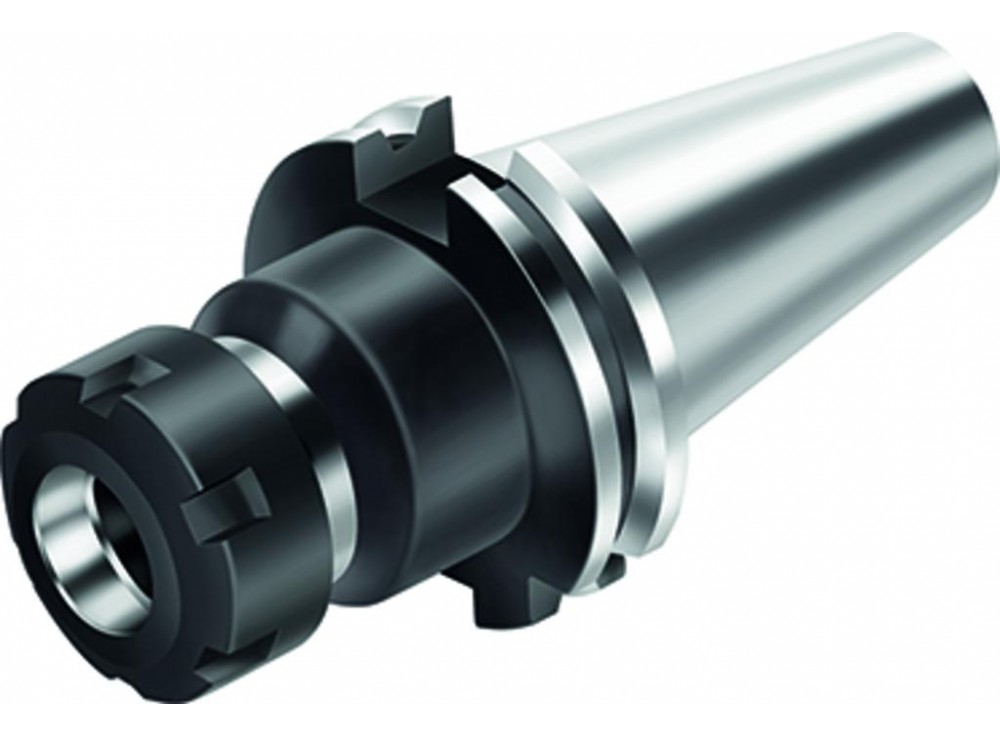

AK300.S40.100.ER20
Image may not correspond to reality
  • AK300.S40.100.ER20
  • AK300.S40.100.ER20

AK300.S40.100.ER20

DIN 69871 A ER collet chuck
AK300.S40.100.ER20
Walter AG
€164.50

€164.50 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For ER collets in accordance with DIN 6499/ISO15488
  • ISO 7388-1

DIN 69871 A ER collet chuck AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=40 • d11=ER20

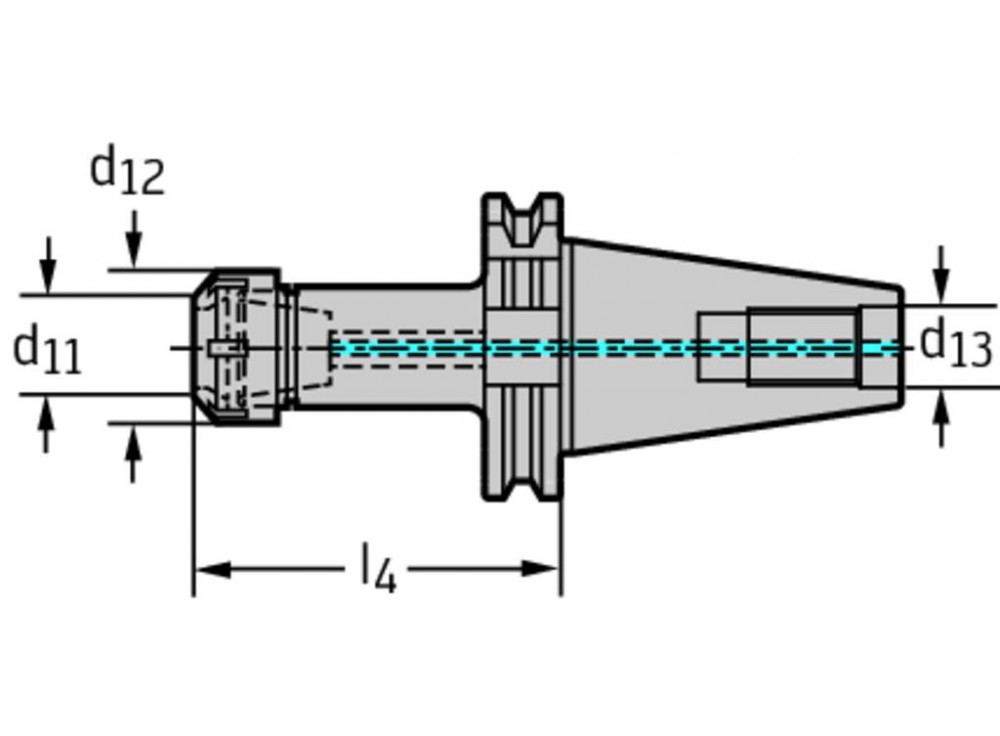

Product Details

Connection diameter [d 11]
1-13
Body diameter [d 12]
34 mm
Collets
ER20
Pull stud, thread size [d 13]
M16
Maximum projection length [l 4]
100 mm
Connection size code [d 1]
SK40
Weight of item
1,25 kg
Weight
1.247 kg
