MarCal 30 EWR
Image may not correspond to reality
  • MarCal 30 EWR
  • MarCal 30 EWR

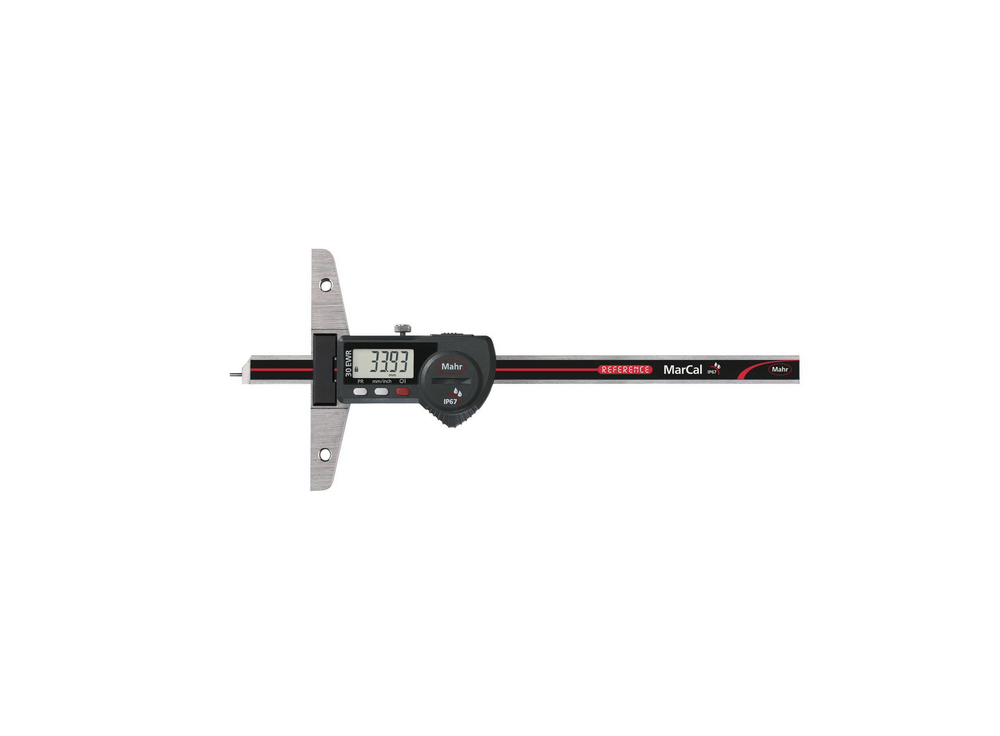

MarCal 30 EWR

Digital depth gage
Mahr
€436.50 - €695.49

€436.50 - €695.49 tax incl.

within 1 week
Features
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Measuring surfaces made of steel
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide

Filter By:

Reference Measuring range Measuring range (inch) Error limit (mm) Depth rod Resolution (mm/inch) Standard Weight Availability Price (tax excl.)
4126651 0 - 150 mm0 - 6"0.03 mmrectangular0.01 / .0005"ISO 13385-2 0.68 kg in stock at the supplier €436.50
4126652 0 - 200 mm0 - 8"0.03 mmrectangular0.01 / .0005"ISO 13385-2 0.69 kg in stock at the supplier €509.25
4126653 0 - 300 mm0 - 12"0.04 mmrectangular0.01 / .0005"ISO 13385-2 1.18 kg in stock at the supplier €576.18
4126654 0 - 500 mm0 - 20"0.05 mmrectangular0.01 / .0005"ISO 13385-2 2.97 kg in stock at the supplier €695.49

Product Details

Battery
CR2032
Function
AUTO-ON / OFF
DATA (data transmission via connection cable)
LOCK function (key lock)
ON/OFF
PRESET (for entering a numerical value)
RESET (set display to zero)
mm/inch
Data interface
Digimatic
Opto RS-232C
USB
Energy supply
Battery life approx. 3 years (approx. 0.5 in wireless mode)
Height of digits
8.5 mm
IP protection category
IP 67
Package contains
battery
case
instruction manual
test certificate
